Guardrails are a collective fall protection system
To protect operators working at a height, the installation of collective fall protection devices must be prioritised with respect to individual fall protection devices.
Thanks to their aluminium structure and special wedge shape, Sicurpal's guardrails are extremely light and have a low visual impact.
- Guardrail compliant with standard EN 14122-3
- 30 kg/metre load on horizontal tubes (outward push)
- Anodised aluminium structure
- Can be customised with epoxy varnishing and RAL colours
- Posts have a triangular shape for a lower visual impact
- Both horizontal handrails can be adjusted simultaneously
- Curves can be continuously adjusted
- Ends anchored to the wall
- Vertical, tipping or tilted guardrail available
- Various accessories available
- 10 year warranty
-
STRT upr 1182mm
Art. 006649 Straight upright 1182 mm high for VKC EVO guardrails with slot diameter 45 -
STR8 UP 1300mm
Art. 007000 Straight Upright 1300 mm high with slot diameter 45 for VKC EVO guardail. -

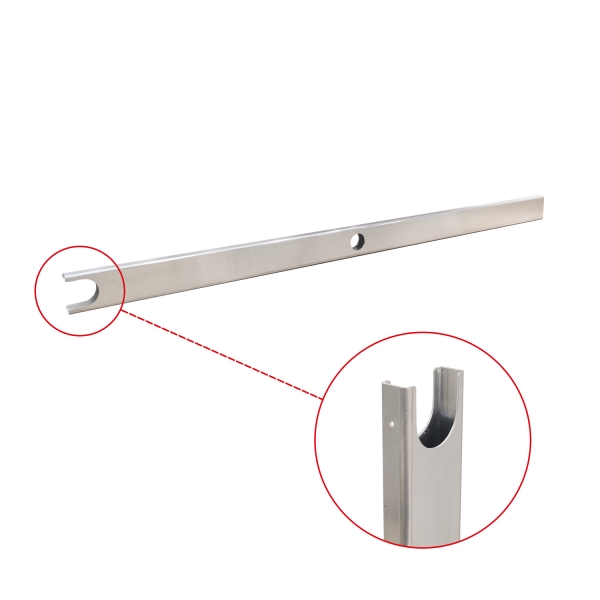

STR8 UP 1400mm
Art. 008072 Straight Upright 1400 mm high with slot diameter 45 for VKC EVO guardail. -
Inclin upr 1165
Art. 006968 Inclined upright 1165 mm high for VKC EVO guardrails with slot diameter 45 -

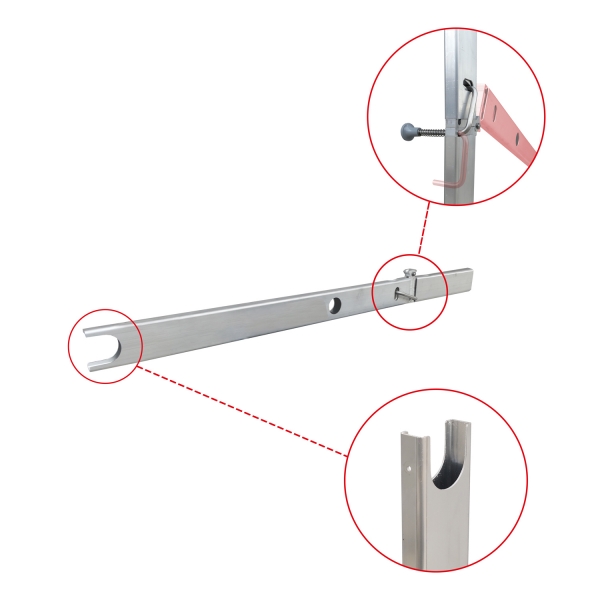

Fold upr 1105mm
Art. 006969 Folding upright 1105 mm high for VKC EVO guardrail with slot diameter 45 -

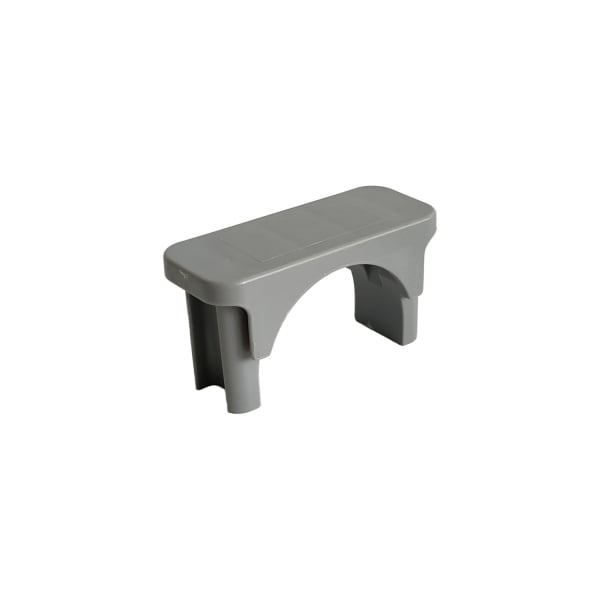

Cap 68X28 mm
Art. 006940 Cap 68X28 mm notch Ø 45mm EVO -

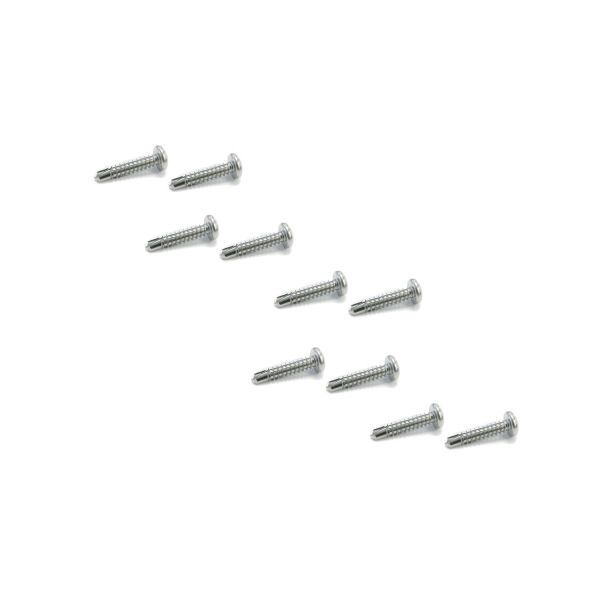

VKC EVO Kit
Art. 007615 Bolting kit consisting of: 10x screws 4.8x25 -

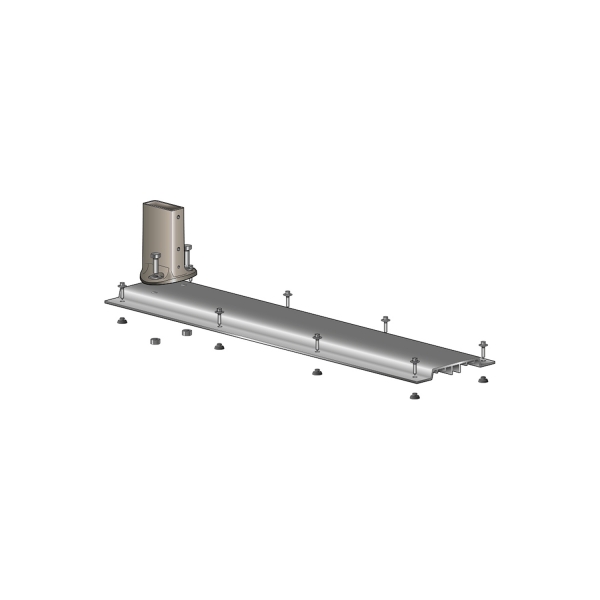

Base 250 parall
Art. 005899 Mounting plate for guardrail fixed on metal sheet with flute span of 250 mm. To be installed perpendicular to the sheet metal, parallel to the guardrail. Self-threading screws and washers not included. -

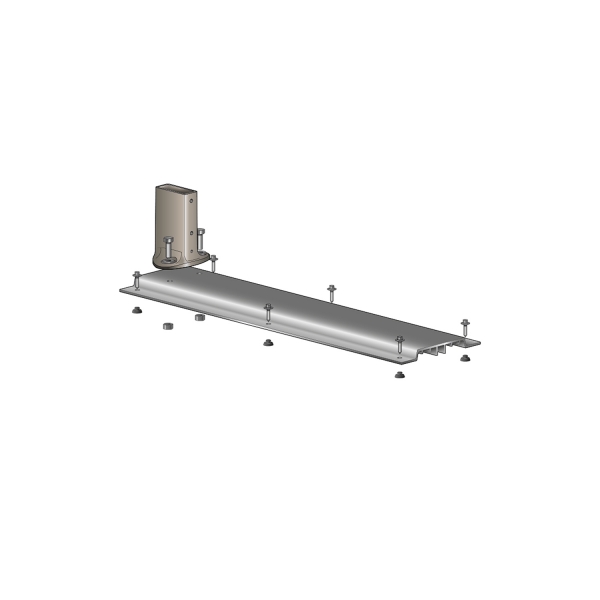

Base 333 parall
Art. 006640 Mounting plate for guardrail fixed on metal sheet with flute span of 333 mm. To be installed perpendicular to the sheet metal, parallel to the guardrail. Self-threading screws and washers not included. -

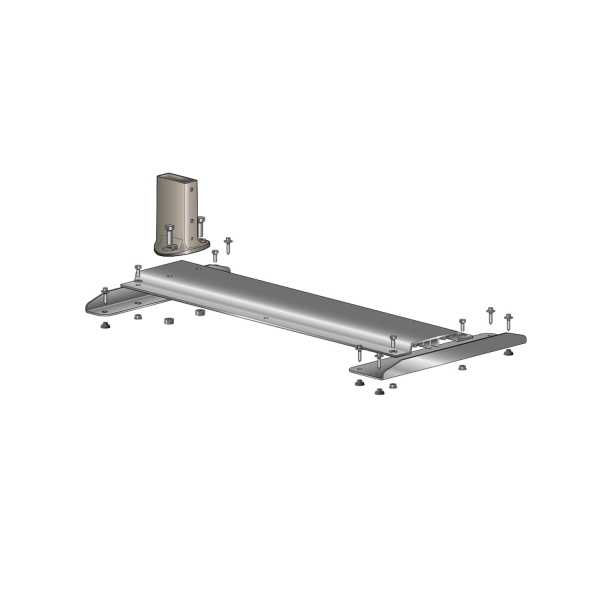

Base 333 perp
Art. 006641 Mounting plate for guardrail fixed on metal sheet with flute span of 333 mm. To be installed parallel to the sheet metal, perpendicular to the guardrail. Self-threading screws and washers not included. -

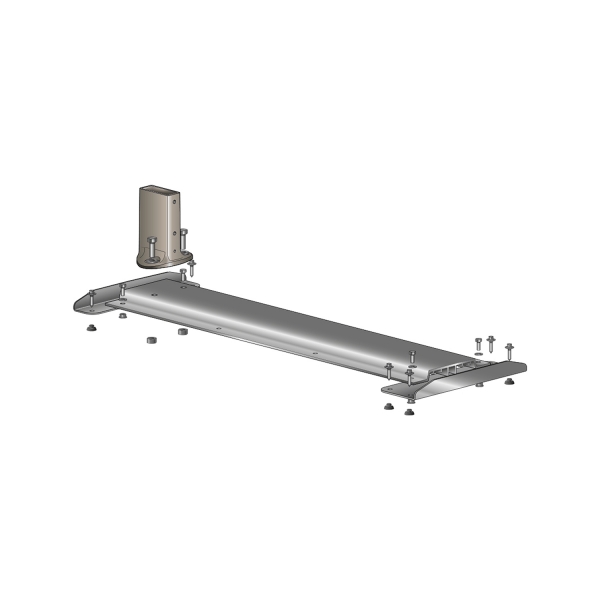

Base 250 perp
Art. 003412 Mounting plate for guardrail fixed on metal sheet with flute span of 250 mm. To be installed parallel to the sheet metal, perpendicular to the guardrail. Self-threading screws and washers not included. -

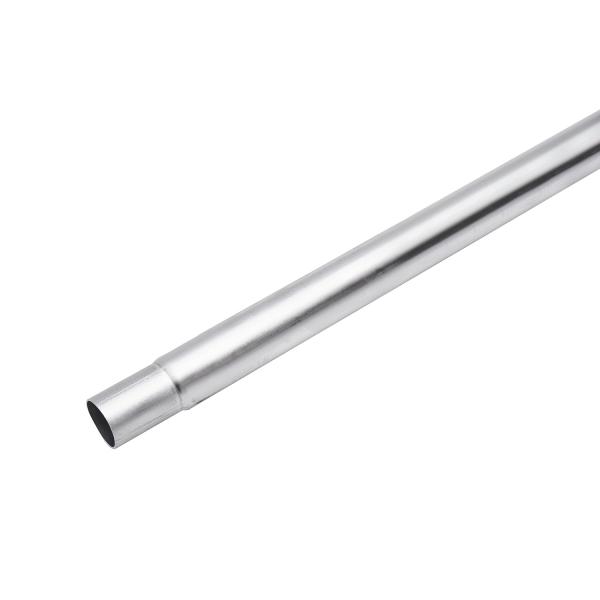

SWG hr EVO
Art. 006645 Swaged handrail Ø45 mm length 3m for VKC EVO guardrails -

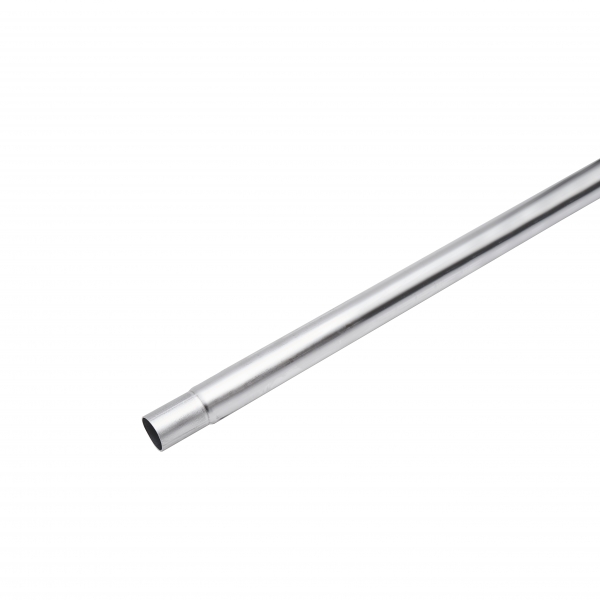

Swg knee rail
Art. 002376 Swaged knee rail 3m long for VKC guardrails -

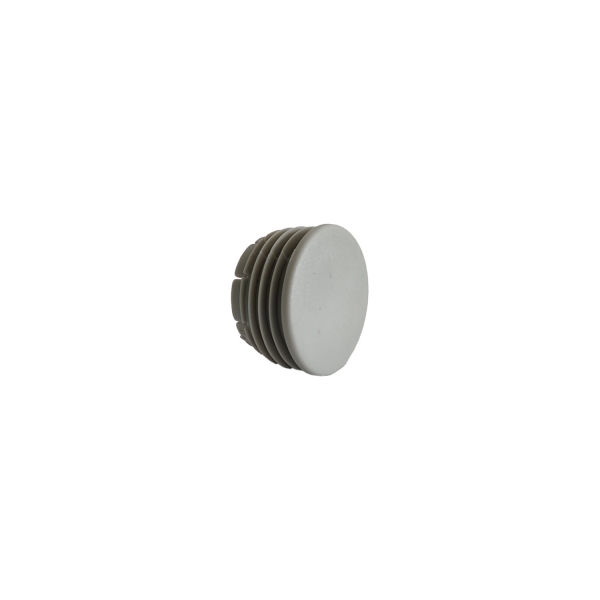

Knee rail cap
Art. 002352 35 mm diameter knee rail end cap for VKC guardrail -

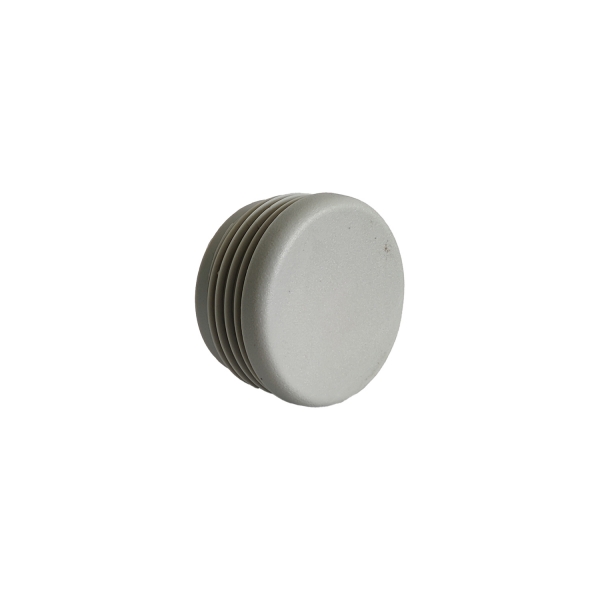

Handrail capEVO
Art. 006647 45 mm diameter handrail end cap for VKC EVO guardrail -

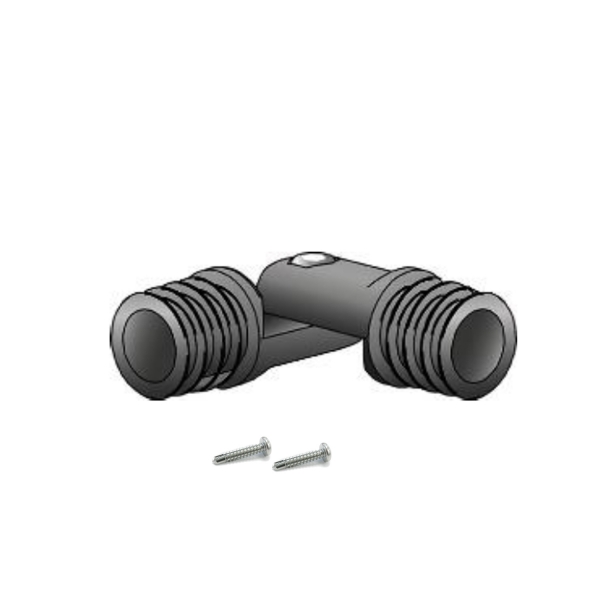

HR corner kit
Art. 007616 Kit consisting of one 45 mm diameter handrail corner angle joint for the VKC EVO guardrail and 2x 4.8x25 screws -

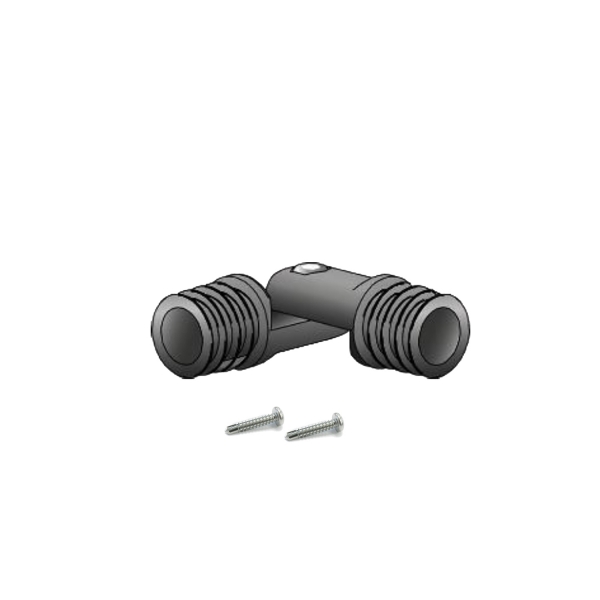

Kr corner kit
Art. 007617 Kit consisting of one 35 mm diameter knee rail corner angle joint for the VKC EVO guardrail and 2x 4.8x25 screws -

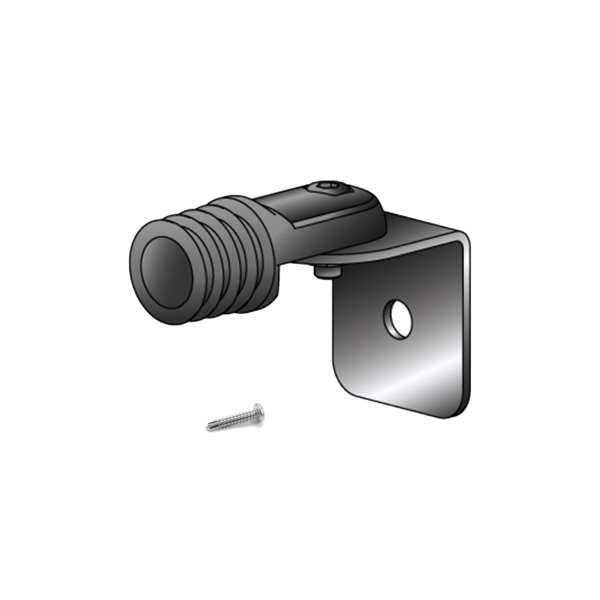

Hr wall connect
Art. 007618 Kit consisting of one wall connector for the 45 mm diameter handrail of the VKC EVO guardrail and 1x screw 4.8x25 -

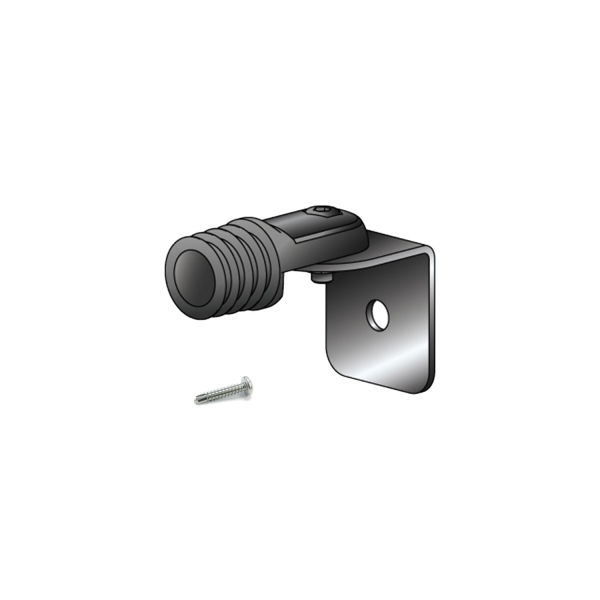

Kr wall connect
Art. 007619 Kit consisting of one wall connector for the 35 mm diameter knee rail of the VKC EVO guardrail and 1x screw 4.8x25 -

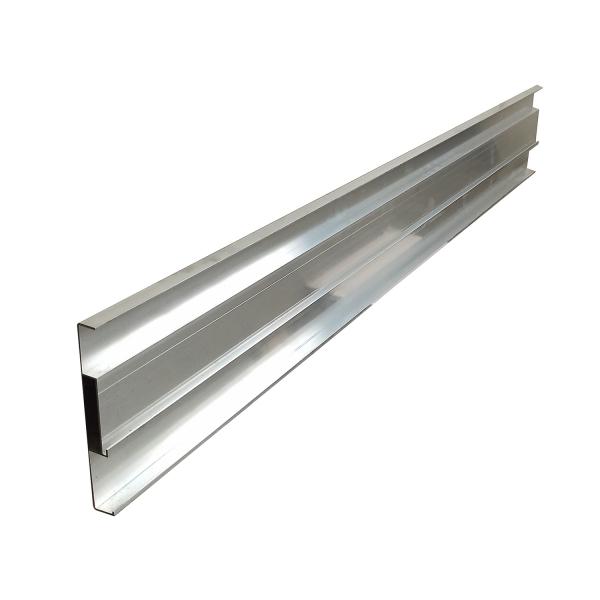

Reinf Toeboard
Art. 004433 Reinforced toeboard 150 mm high and 3000 mm long for VKC guardrail -

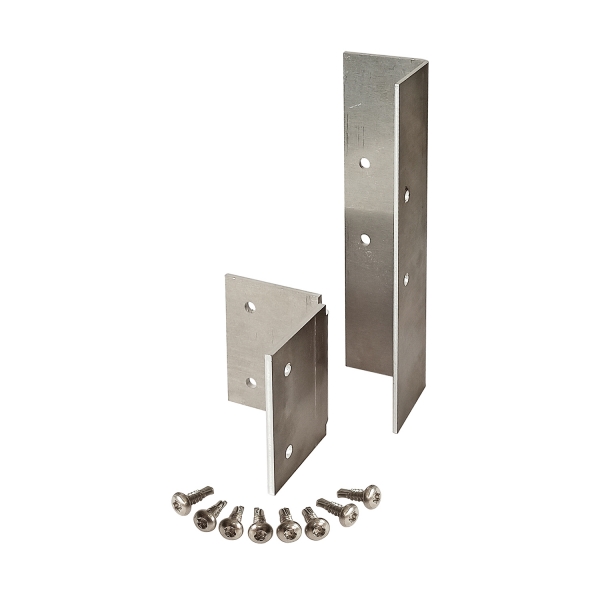

Corner VKC TB
Art. 005434 Corner connection kit for reinforced VKC toeboard h150 with 8 self-drilling screws 4.8x16 -

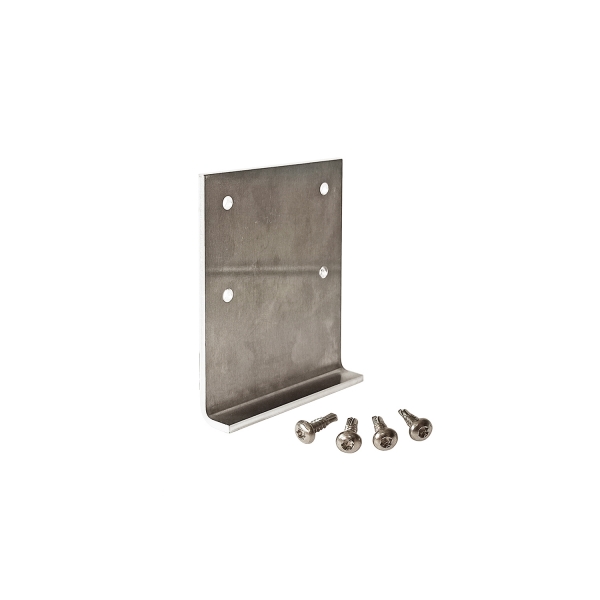

STR connec TB
Art. 005432 Straight connector kit for joining the reinforced VKC toeboards with 4 self-drilling screws 4.8x16 -

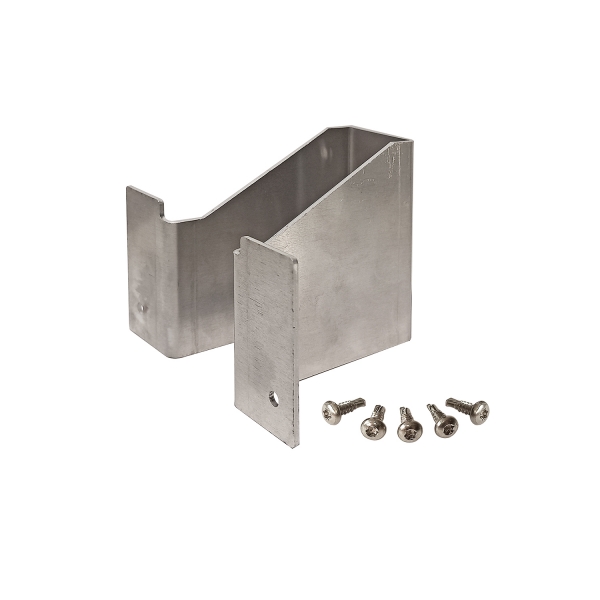

TB support kit
Art. 005433 Reinforced VKC toeboard support kit for mounting the floor fixture guardrail. Including 3x self-drilling screws 4.8x16 for fixing to the toeboard and 3x self-drilling screws 4.8x25 for fixing to the upright. -

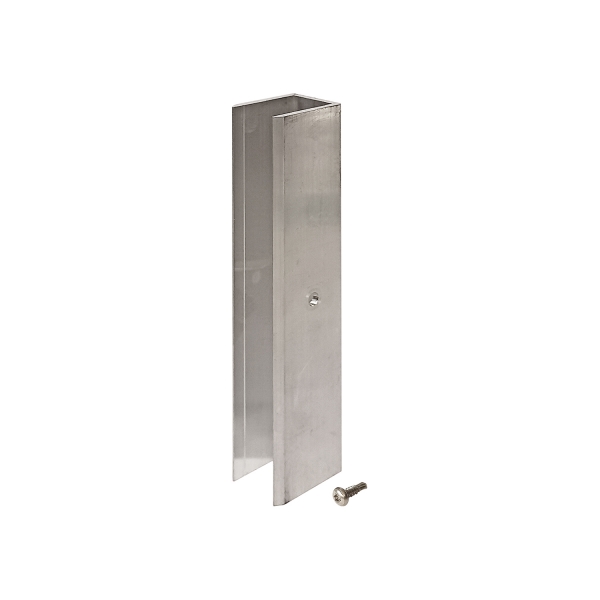

Cap VKC Toeboar
Art. 005431 Cap kit for reinforced VKC toeboard h150 with 1x self-drilling screw 4.8x16 -

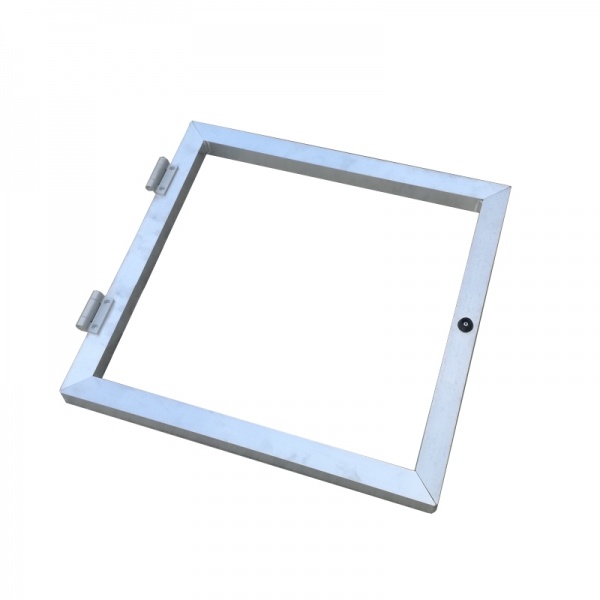

Guardrail gate
Art. 002349 VKC guardrail gate including hinges, uprights not included -

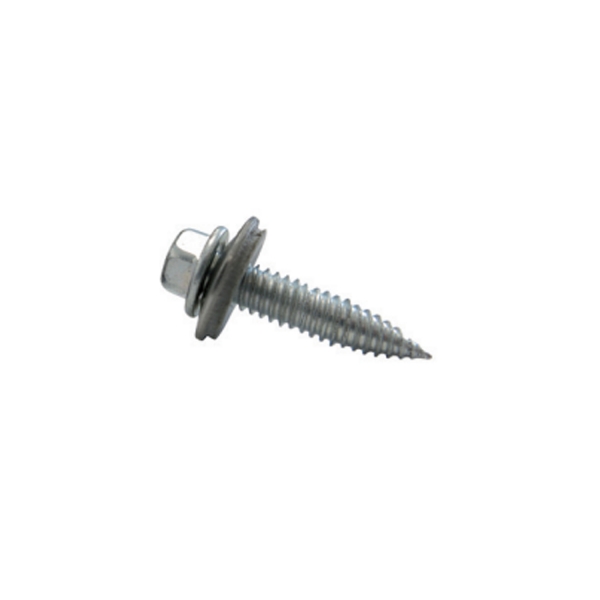

Drillnox screw
Art. 007013 Drillnox screw 6x25 with sealing washers -

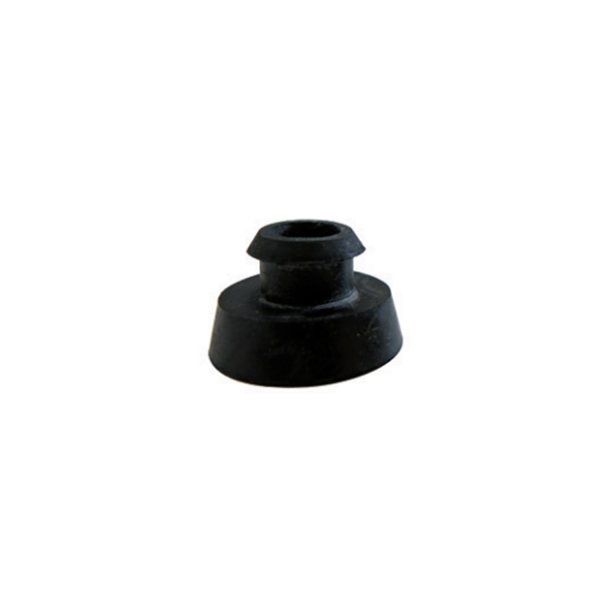

Bowl washer
Art. 007014 Sealing bowl washer
