Shed Line

Basic e Shed Line

"The plate lifeline for the industrial sector"

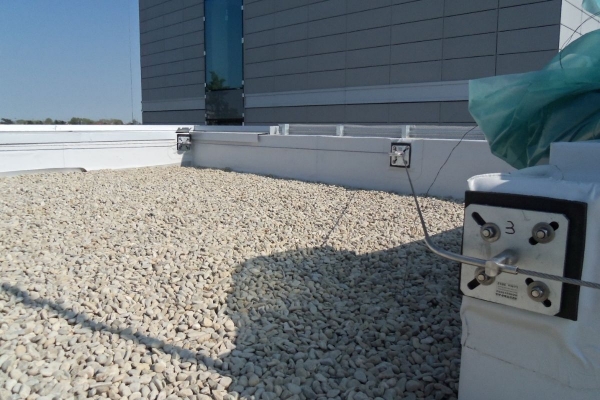

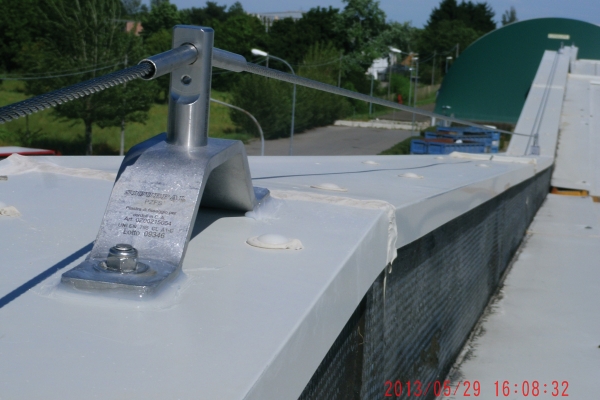

Shed line plates are ideal for wall or ceiling lifelines

  • Products available in the hot galvanised iron or pickled 304 AISI stainless steel finish
  • 300x300 mm slotted plates, recommended for brick walls
  • 180x180 mm plates, recommended for reinforced concrete structures

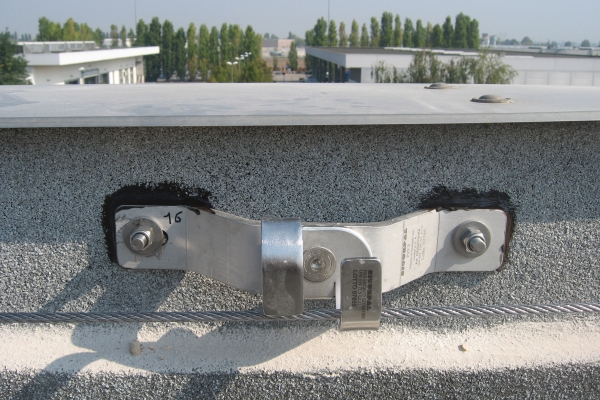

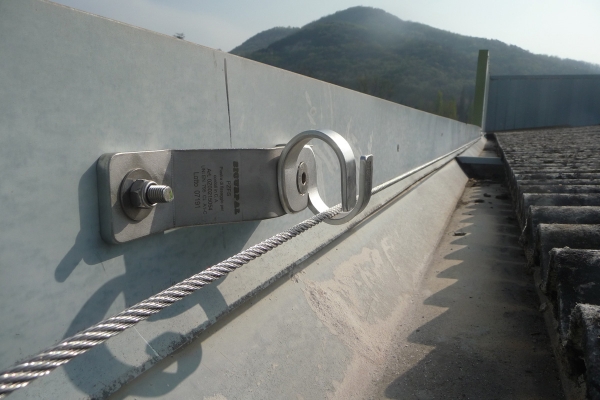

  • 300x60 mm thin plates, recommended for the reinforced concrete edge beams of prefabricated structures
  • Bypassable fairlead with shuttle to facilitate installing the line on large roofings
  • 10 year warranty

For further information on device anchoring and on the responsibilities under current regulations, please refer to the downloadable manual below.

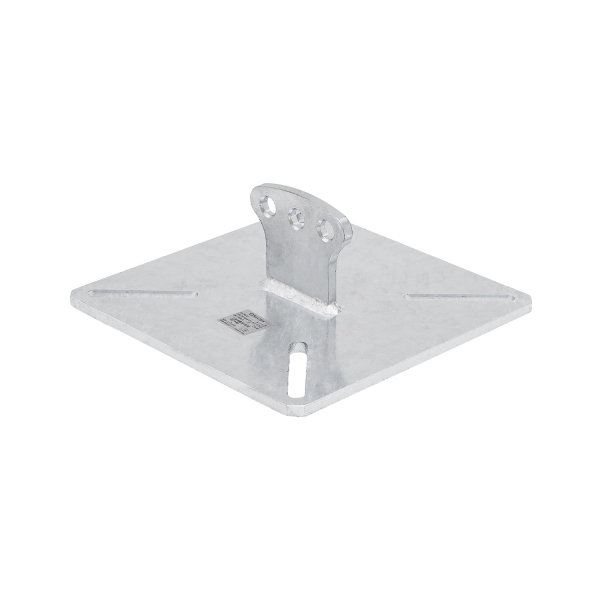

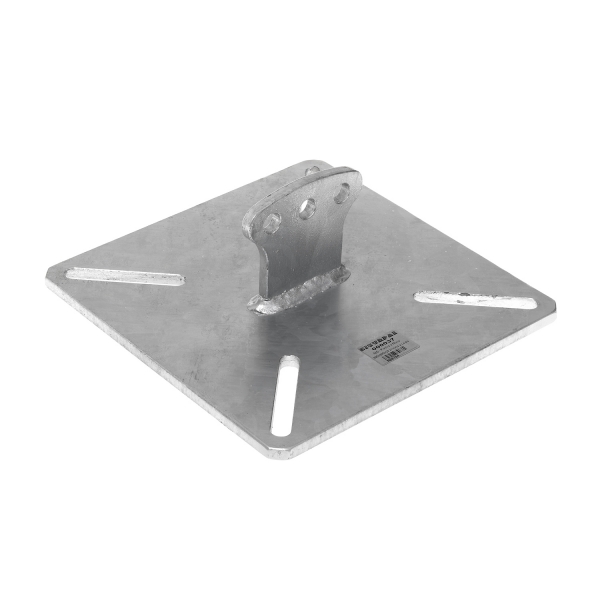

  • SZG galv plate
    Art. 000037
    Galvanised SZG Plate Base 300x300
  • SS SZG Plate
    Art. 001509
    Stainless steel SZG Plate Base 300x300

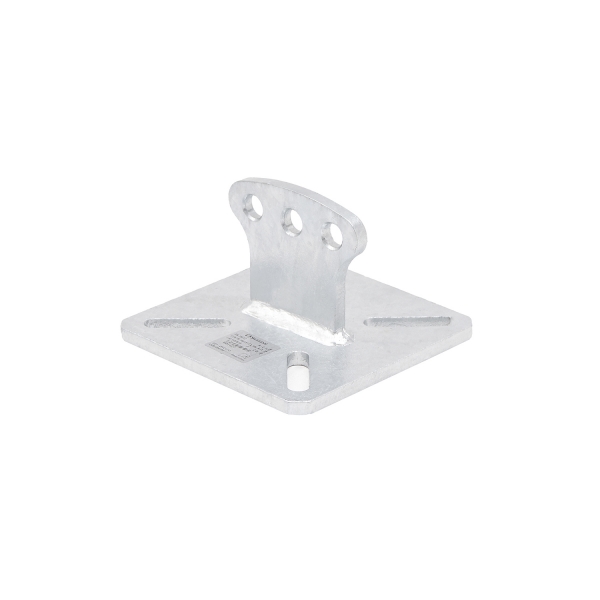

  • SZP plate
    Art. 000188
    Galvanised SZP plate Base 180x180

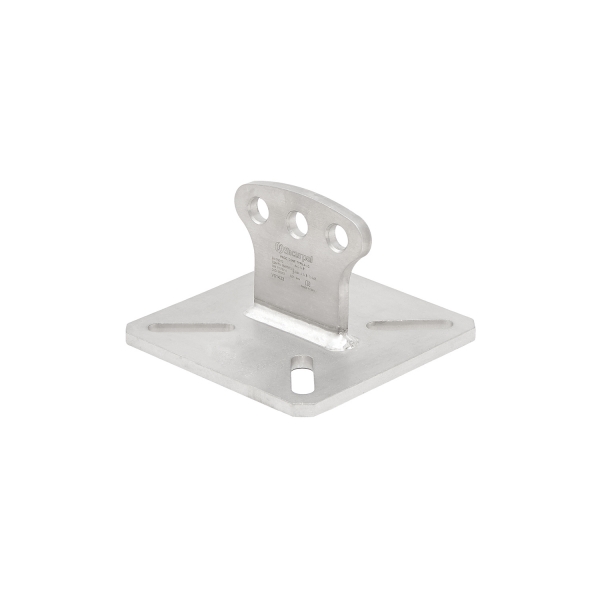

  • SS SZP
    Art. 000262
    Plate made in stainless steel. Base size 180x180x10 mm with 4 60 mm slots for fixing. Ideal for lifelines on the reinforced concrete walls.
  • GV SZS plate
    Art. 000189
    Plate produced in hot galvanised. Base size 300x60x10 mm and 4 bores 15 mm for fixing. Ideal for lifelines on the reinforced concrete roof curbs of prefabricated elements.
  • SS SZS plate
    Art. 000268
    Stainless steel plate with base size 300x60x10 mm and 4 bores 15 mm for fixing. Ideal for lifelines on the reinforced concrete roof curbs of prefabricated elements.

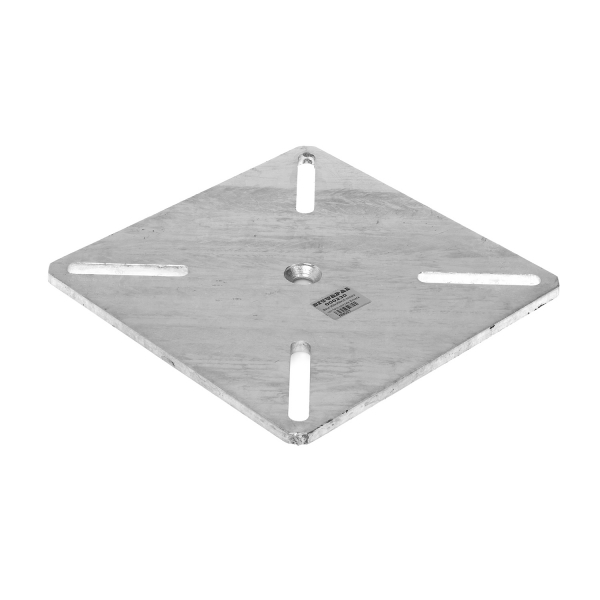

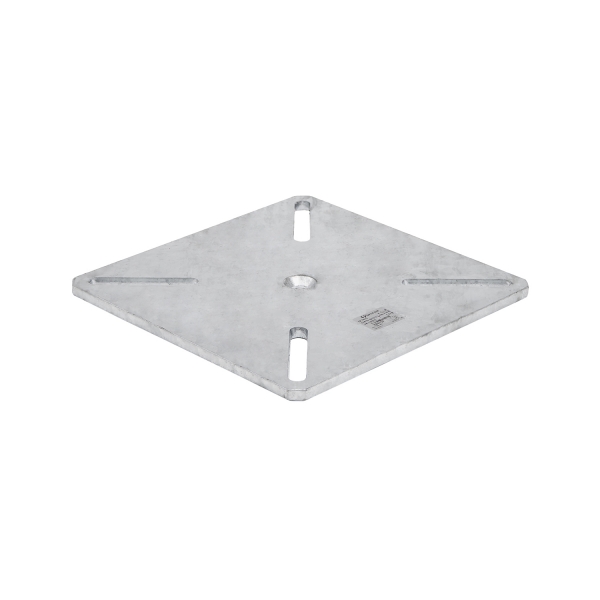

  • Galv PZFG plate
    Art. 000230
    Hot galvanised plate with base size 300x300x10 mm with 4 slots for fixing. Ideal for creation of lifelines installed on masonry walls.

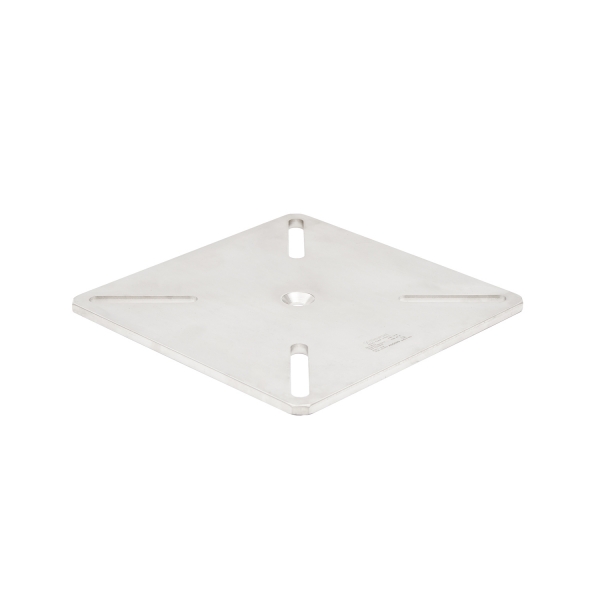

  • SS PZFG plate
    Art. 001510
    Stainless steel plate with base size 300x300x10 mm with 4 slots for fixing. Ideal for creation of lifelines installed on masonry walls.

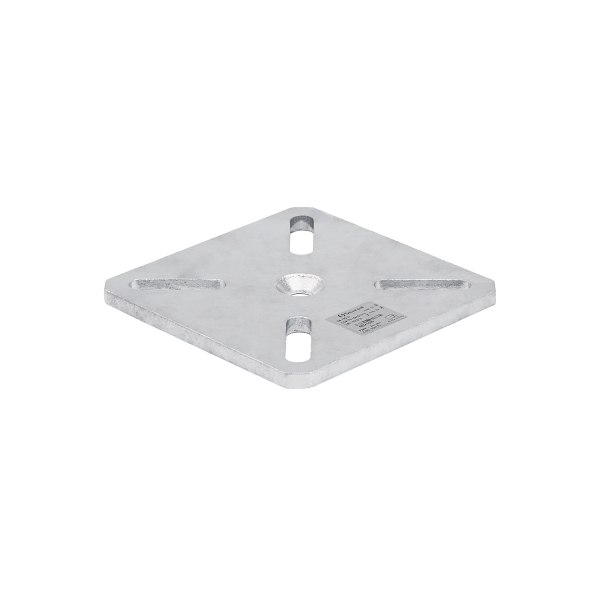

  • Galv PZFP plate
    Art. 000232
    Hot galvanised fixing plate with base size 180x180x10 mm with 4 slots for fixing. Ideal for lifelines on reinforced concrete walls.
  • SS PZFP plate
    Art. 001236
    Stainless steel fixing plate with base size 180x180x10 mm with 4 slots for fixing. Ideal for lifelines on reinforced concrete walls.
  • PZFS Plate
    Art. 000233
    Stainless steel wall-mounted plate with size 300x60x10 mm and two slots for fixing. Used to fix the intermediate accessory. deal for lifelines on prefabricated reinforced concrete roof curbs.

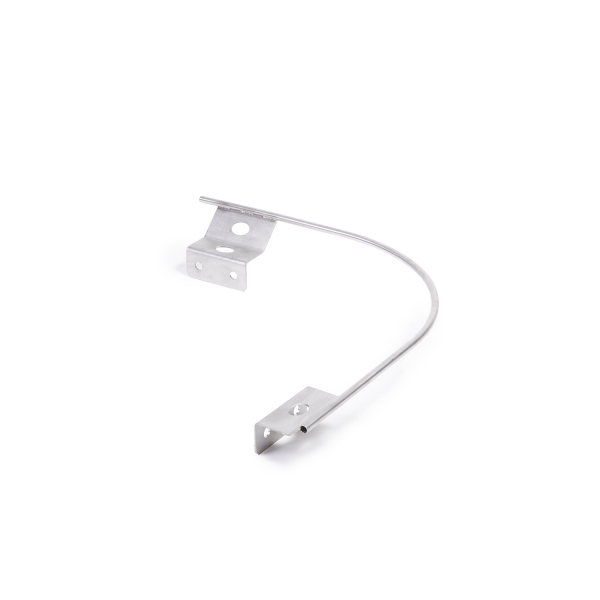

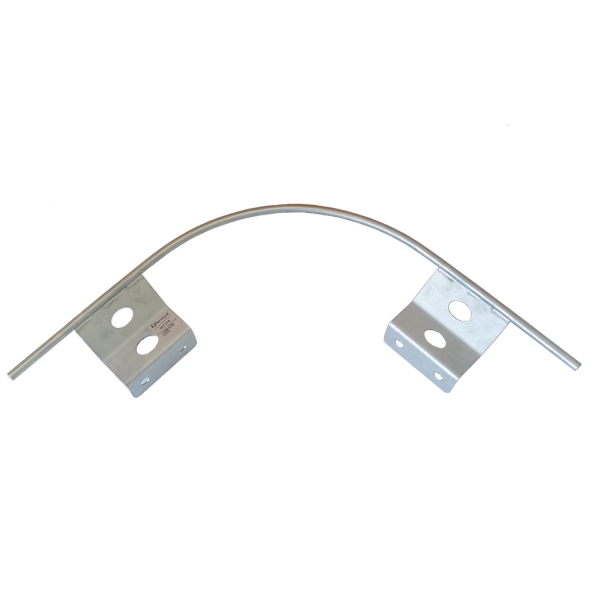

  • Outer 90° bend
    Art. 001374
    Trolley outer 90° wall bend

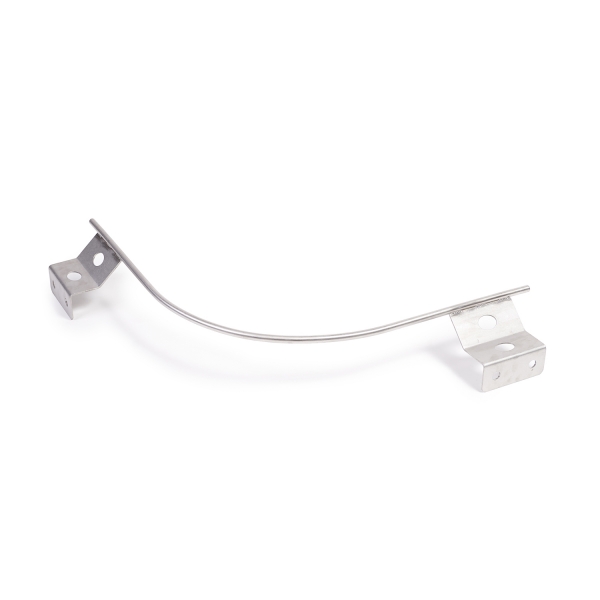

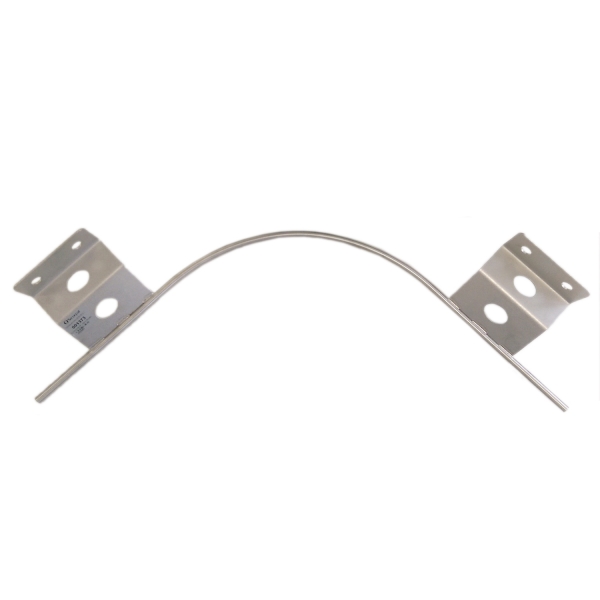

  • Inner 90° bend
    Art. 001373
    Trolley inner 90° wall bend
  • Alu fairlead
    Art. 001094
    Aluminium by-passable fairlead
  • Corner pulley
    Art. 000306
    Corner cable support with AISI 304 stainless steel elements and aluminium pulley. Hardware included: bolt 16x50 + self-locking nut and ø16 mm stainless steel washer.
  • Mini-Supp Tens
    Art. 000765
    AISI 304 stainless steel mini support for installation of the turnbuckle or guide pipe. Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel.
  • Ver.Fair.Tr.
    Art. 000192
    Fix Vertical fairlead for trolley with nuts and bolts
  • 0-45Adj.fair.
    Art. 001344
    Vertical fairlead adj0-45 for Shut

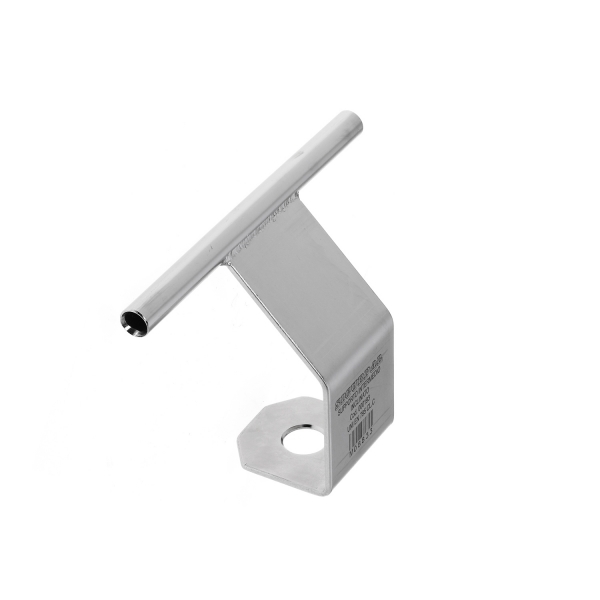

  • Inc.Fair.Tr.
    Art. 000193
    Inclined fairlead for trolley with nuts and bolts

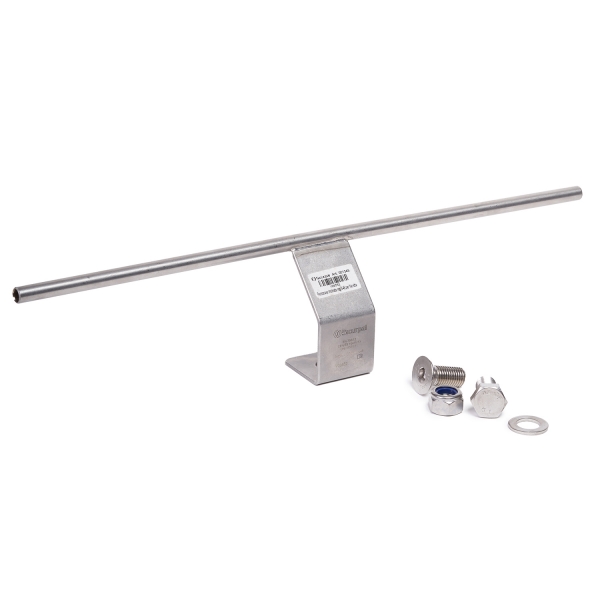

  • 0-45Tilt.fairl.
    Art. 001345
    Tilted fairlead adj 0-45 for Shut
  • 90Fix.vert.fair
    Art. 001327
    90 Fix vertical fairlead for Shut
  • 90° Tube
    Art. 000308
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 90° corers.
  • 135° Tube
    Art. 000307
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 135° corers.
  • Straight tube
    Art. 000309
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 180° corers.
  • Cable dn8
    Art. 006650
    Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability.
  • Swage
    Art. 002477
    Tensioner with swage to crimp+nuts and bolts
  • Tensioner Supp
    Art. 000194
    AISI 304 Stainless steel support for installation of the pipe turnbuckle or the tube.Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel.
  • Tens tog/crimp
    Art. 000294
    Tensioner Toggle/Turnbuckle to crimp
  • F/S crimp tens.
    Art. 002494
    Fork/swage (to crimp) tensioner turnbuckle
  • Tens. dbl joint
    Art. 000032
    AISI 316 Stainless steel turnbuckle with closed core for cable tensioning, length 250 mm, with two jointed jaw ends.
  • F/F tensioner
    Art. 002493
    AISI 304 Stainless Steel Fork/fork tensioner turnbuckle
  • Jaw terminal
    Art. 000292
    Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304
  • Jaw terminal
    Art. 000293
    Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316
  • Eye terminal
    Art. 003664
    Eye terminal for d.8 cable to crimp
  • Fix dn8 cable
    Art. 001513
    AISI 304 stainless steel kit for clamping 8 mm diameter cable, composed of: 4 AISI 304 stainless steel clamps, 1 stainless steel thimble d. 8 mm and 2 heat-shrinkable sleeves.

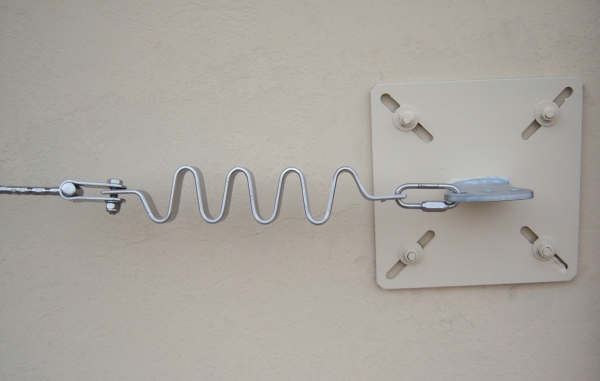

  • Energy Absorber
    Art. 000033
    Stainless steel 304 Lifeline Energy Absorber
  • Quick release
    Art. 001758
    Quick release carabiner (not usable with SICURSLIM)

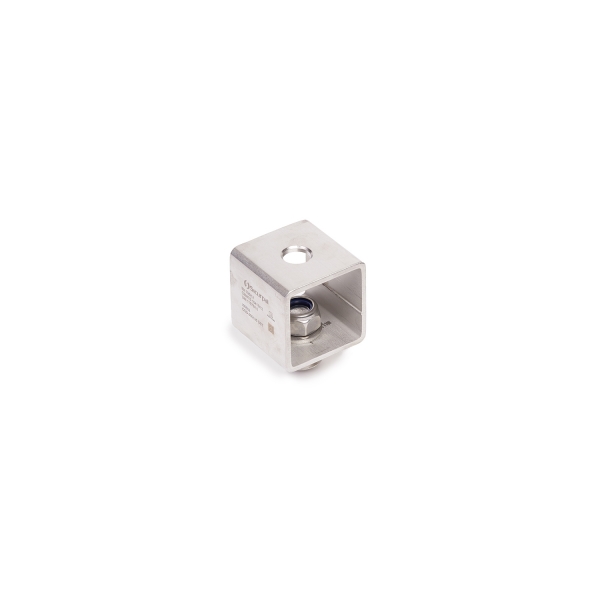

  • Spacer 60x60
    Art. 000195
    Spacer with dimensions 60x60x60 mm and central bore Ø 17 mm on both surfaces. Manufactured in AISI 304 INOX steel.
  • Openable travel
    Art. 003747
    Openable anti-fall cable traveller in AISI 316 stainless steel with carabiner
  • Fixed cable t.
    Art. 003927
    Fixed cable trolley for lifeline with AISI 316 stainless steel carabiner
  • Trolley remov.
    Art. 003934
    Fixed trolley removal device
  • Tensioner Seal
    Art. 000290
    Seal for tensioner block
  • End of line 355
    Art. 003926
    End of line UNI 355 signal to be put on the cable
  • End line STOP
    Art. 003935
    End of line STOP signal to be put on the cable
  • End of line PPE
    Art. 003924
    End of line signal to be put on the cable informing to change the PPE
  • IT Lifeline sig
    Art. 000296
    Lifeline sign in Italian
  • Lifeline signEN
    Art. 003354
    Lifelines information sign, English version
  • Lifeline signES
    Art. 004738
    Lifelines information sign in Spanish
  • Lifeline FI/SV
    Art. 004787
    Lifelines information sign in Finnish and Swedish
  • Lifeline ID
    Art. 000291
    Lifeline identification code
  • System Register
    Art. 002562
    Sicurpal's System Register - Inspection and maintenance
  • Docubox
    Art. 003334
    Document holder with fixing kit

Components to be combined with this lifeline

  • Dbl crimp termi
    Art. 002789
    Double crimping terminals for cable junction dn8, external 12,5 inox aisi 316

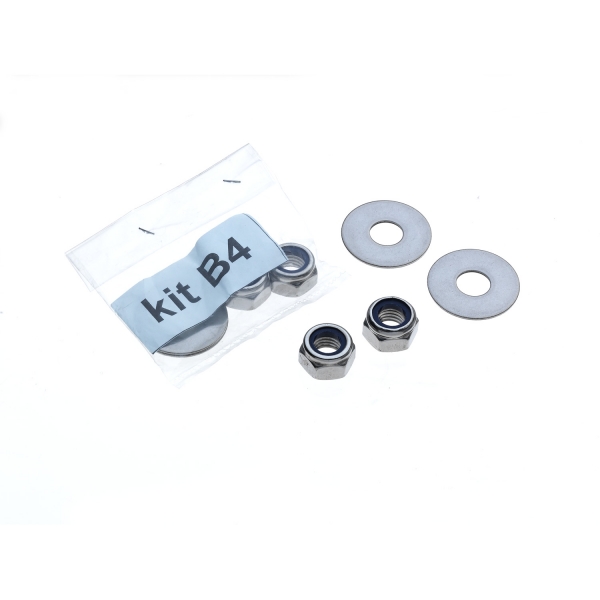

  • Kit B4
    Art. 000888
    Nuts and bolts kit consisting of: 2 self-lock.+2 d12 washers
  • Kit B6
    Art. 000890
    Nuts and bolts kit consisting of: 4 self-lock.+4 d12 washers
  • Bar dn12
    Art. 000014
    Threaded rod dn12 Stainless steel 304 Degreased
  • Bar dn12x18
    Art. 000035
    Threaded rod dn12 of 18 cm with bolt
  • Resin
    Art. 002365
    High quality resin for renforced concrete and bricks
  • Eco.Resin 410ml
    Art. 000021
    Econ. two-component resin 410ml
  • Res.Nordic400ml
    Art. 002124
    Nordica 400 ml economic two-component resin - for applications up to -20°
  • Screw
    Art. 000010
    Fully threaded screw with countersunk TX40 9x160
  • Screw
    Art. 000245
    Fully threaded screw with countersunk TX40 9x200
  • Screw
    Art. 000247
    Fully threaded screw with countersunk TX40 9x280
  • Screw
    Art. 000249
    Fully threaded screw with countersunk TX40 11x100
  • Vite t.f 11X200
    Art. 003696
    Vite Tutto Filetto TX50 11 X 200
  • Screw
    Art. 005940
    Fully threaded screw with countersunk TX40 9x160
  • Washer M10 diam
    Art. 000011
    Washer M10 diam.
  • Washer M10 diam
    Art. 000250
    Washer M10 diam.
