- Specific product for installation on double fold joints
- Installation of the device does not require drilling
- Certified and compliant system
UNI EN 795:2012 for one person
UNI CEN/TS 16415:2013 for two (cod. 002797) or four people (cod. 002798/002809/002810 + 002832)
- Recommended use by a person as a pendulum effect
- Made of pickled AISI 304 stainless steel
- 10-year warranty
-
SGF4-50
Art. 002798 Stainless steel extremity anchorage Type A or C (4 persons) for Standing Seam Metal sheet with 380-455mm distance between centres. -
Angular

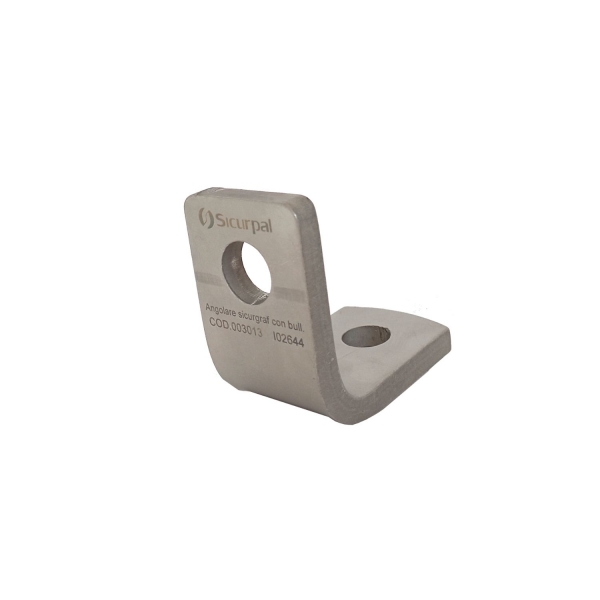

Art. 003013 Angular with M16 washer and self-locking -
SGF2C

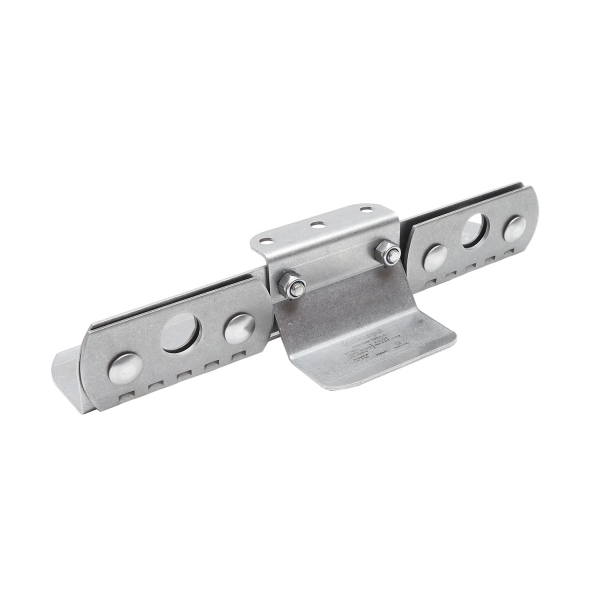

Art. 002802 Stainless steel Type C anchorage for Standing Seam Metal sheet -
SGF4-60

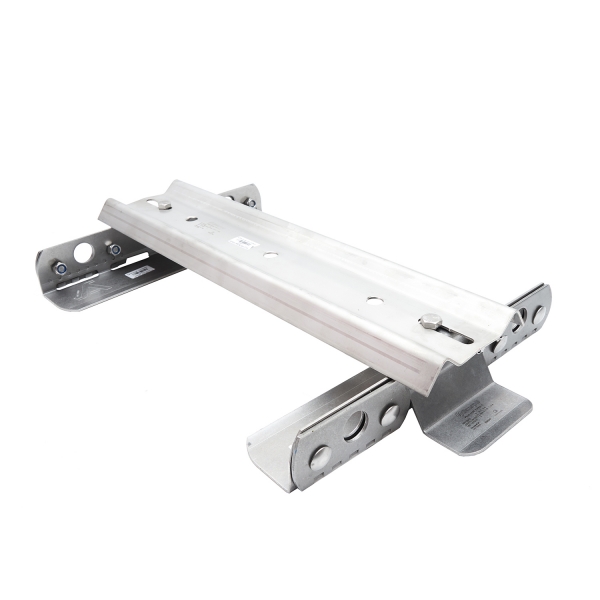

Art. 002809 Stainless steel extremity anchorage Type A or C (4 persons) for Standing Seam Metal sheet with 480-555mm distance between centres. -
SGF4-67
Art. 002810 Stainless steel extremity anchorage Type A or C (4 persons) for Standing Seam Metal sheet with 550-625mm distance between centres. -
SGF2A

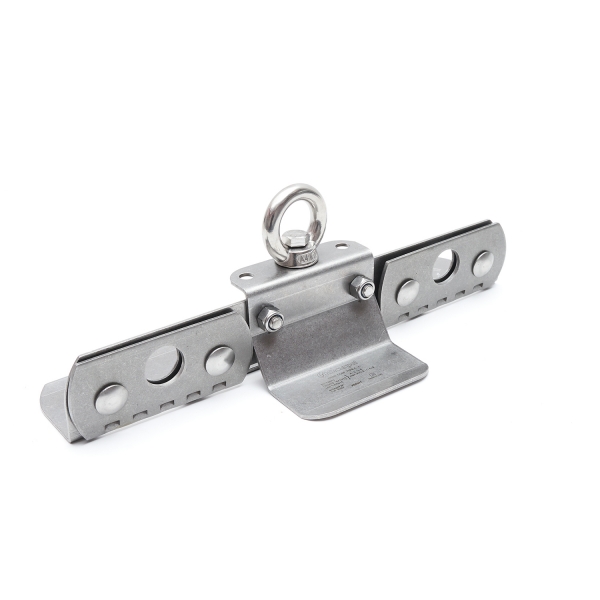

Art. 002797 Stainless steel Type A anchorage for Standing Seam Metal sheet -
Male eyeb. M16

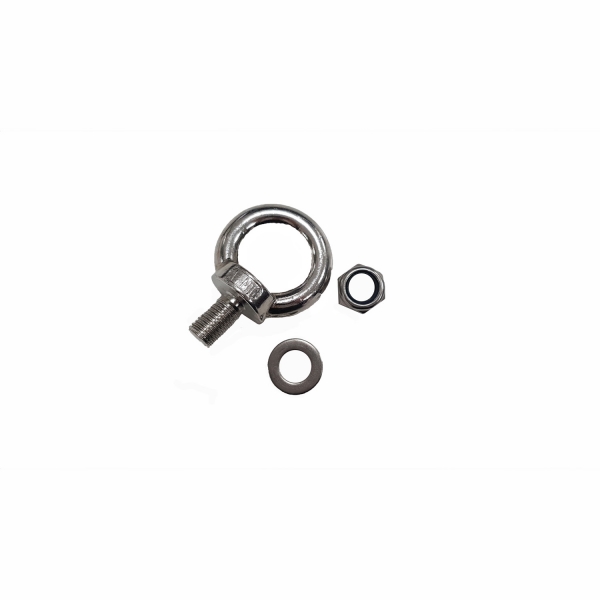

Art. 000789 Male eyebolt M16 + bolt -
SS int fairlead
Art. 000501 Intermediate cable support in AISI 304 Stainless Steel. M16 self-locking nut and Ø 16 washer included. -
Ver.Fair.Tr.
Art. 000192 Fix Vertical fairlead for trolley with nuts and bolts -
0-45Adj.fair.
Art. 001344 Vertical fairlead adj0-45 for Shut -
Cable dn8
Art. 006650 Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability. -
Swage
Art. 002477 Tensioner with swage to crimp+nuts and bolts -
Tensioner Supp
Art. 000194 AISI 304 Stainless steel support for installation of the pipe turnbuckle or the tube.Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel. -
Tens tog/crimp
Art. 000294 Tensioner Toggle/Turnbuckle to crimp -
F/S crimp tens.
Art. 002494 Fork/swage (to crimp) tensioner turnbuckle -
Tens. dbl joint
Art. 000032 AISI 316 Stainless steel turnbuckle with closed core for cable tensioning, length 250 mm, with two jointed jaw ends. -
F/F tensioner
Art. 002493 AISI 304 Stainless Steel Fork/fork tensioner turnbuckle -
Jaw terminal
Art. 000292 Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304 -
Jaw terminal
Art. 000293 Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316 -
Fix dn8 cable
Art. 001513 AISI 304 stainless steel kit for clamping 8 mm diameter cable, composed of: 4 AISI 304 stainless steel clamps, 1 stainless steel thimble d. 8 mm and 2 heat-shrinkable sleeves. -
Energy Absorber
Art. 000033 Stainless steel 304 Lifeline Energy Absorber -
Quick release
Art. 001758 Quick release carabiner (not usable with SICURSLIM) -
Openable travel
Art. 003747 Openable anti-fall cable traveller in AISI 316 stainless steel with carabiner -
Fixed cable t.
Art. 003927 Fixed cable trolley for lifeline with AISI 316 stainless steel carabiner -
Trolley remov.
Art. 003934 Fixed trolley removal device -
Tensioner Seal
Art. 000290 Seal for tensioner block -
End of line PPE
Art. 003924 End of line signal to be put on the cable informing to change the PPE -
End of line 355
Art. 003926 End of line UNI 355 signal to be put on the cable -
End line STOP
Art. 003935 End of line STOP signal to be put on the cable -
IT Lifeline sig
Art. 000296 Lifeline sign in Italian -
Lifeline signES
Art. 004738 Lifelines information sign in Spanish -
Lifeline signEN
Art. 003354 Lifelines information sign, English version -
Lifeline FI/SV
Art. 004787 Lifelines information sign in Finnish and Swedish -
Lifeline ID
Art. 000291 Lifeline identification code -
System Register
Art. 002562 Sicurpal's System Register - Inspection and maintenance -
Docubox
Art. 003334 Document holder with fixing kit -
SGF4-60+eyebolt

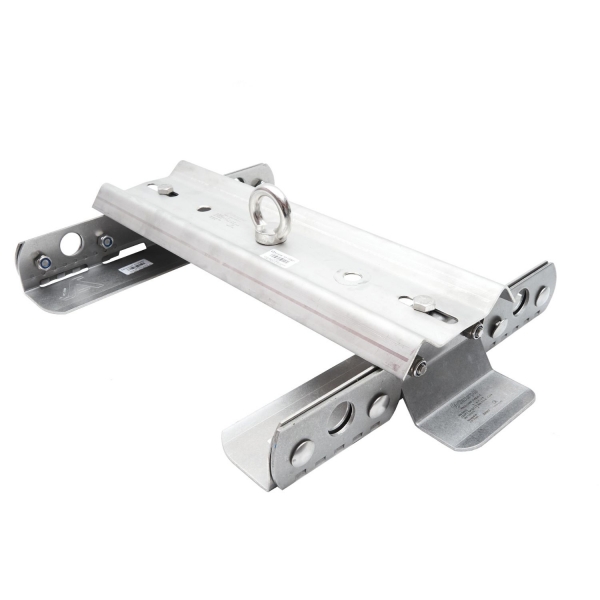

Art. 006521 Stainless steel extremity anchorage Type A or C (4 persons) for Standing Seam Metal sheet with 480-555mm distance between centres with eyebolt 000789 included
-
Dbl crimp termi
Art. 002789 Double crimping terminals for cable junction dn8, external 12,5 inox aisi 316 -
Kit B17
Art. 003015 Nuts and bolts kit consisting of: 2 self-lock.+2 nuts+4 d10x30 washers
