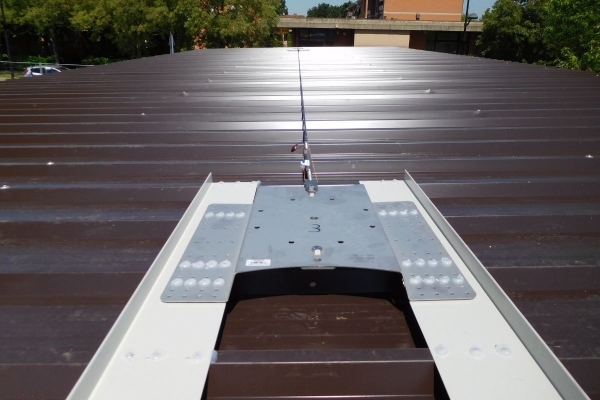

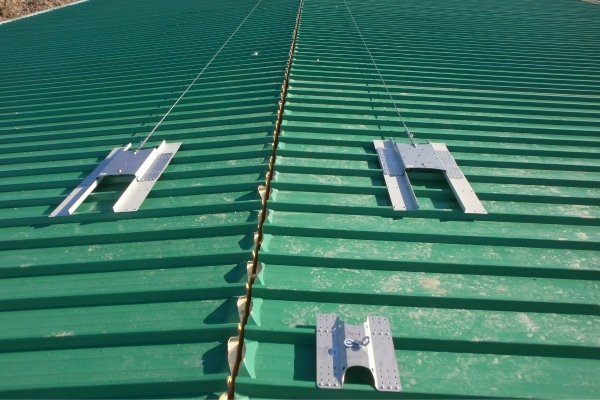

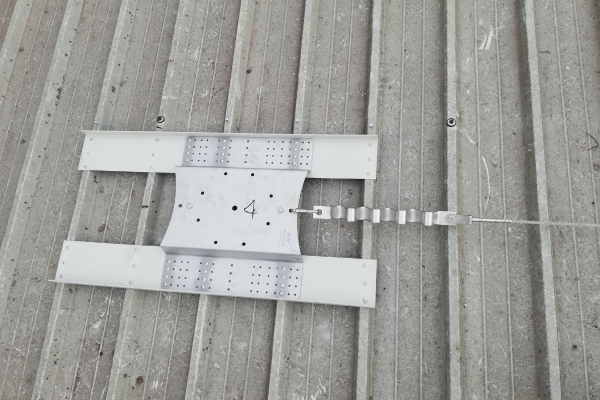

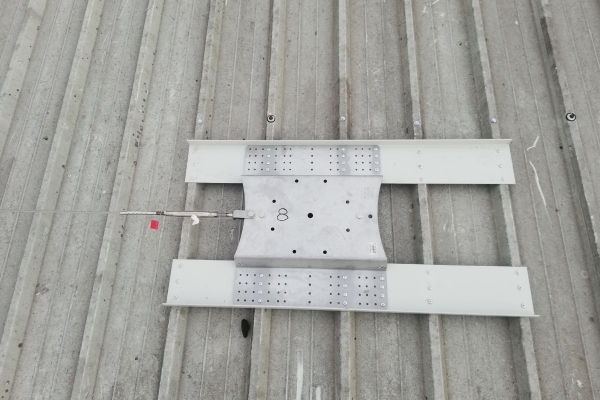

Sicurlam

Metal sheet lifelines

“The ideal lifeline for trapezoidal sheet metal”

  • Entirely made of AISI 304 Stainless steel
  • Can be installed on all sizes of centre-line sheets
  • Waterproofing included
  • 524x450 mm plate to distribute the load on big surfaces so as to not damage the roofing in the event of a fall
  • Certified to be used by up to 4 operators
  • 10 year warranty

To learn more about device anchoring or about the responsibilities under current regulations, please download the manual below.

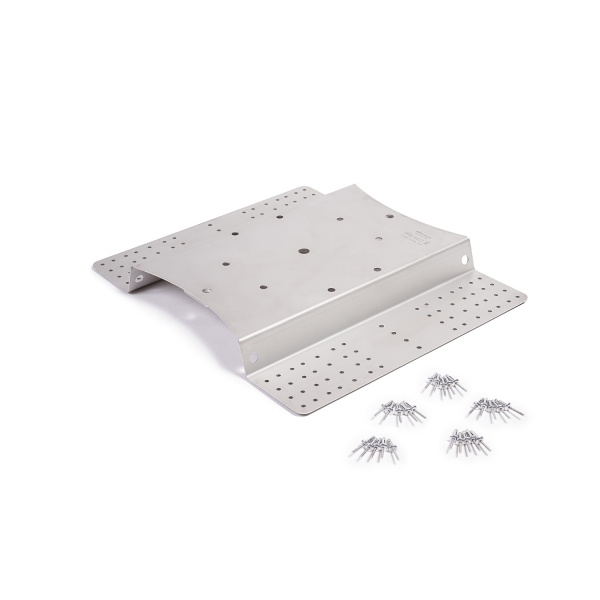

  • Sicurlam w/riv
    Art. 001517
    Pickled AISI 304 stainless steel plate for metal sheet, designed for ends and non-straight intermediate elements. Base size 524X450X53 mm, with 2 sheets of neoprene and reinforcement plate. Supplied with Kit B16 with rivets for the fixing.

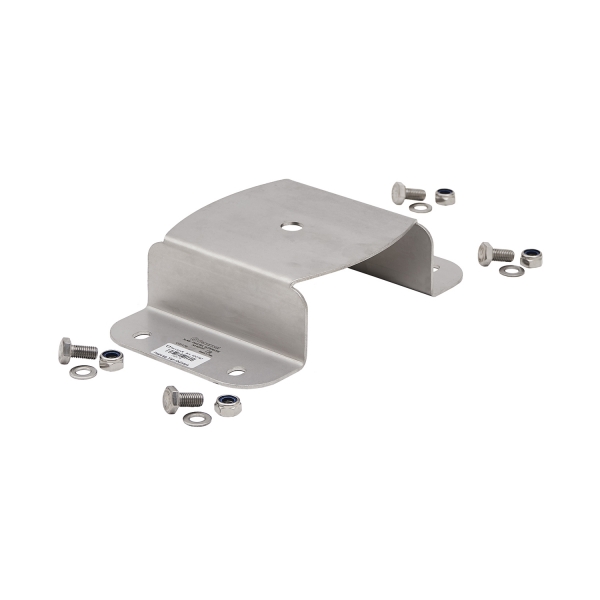

  • Xlam plate
    Art. 000787
    Accessory fixing plate to be put on top of Sicurlam plate in intermediate position. It allows the lifeline cable to be positioned at a height of 0.146 m, thus preventing the cable from touching the roofing sheet. Nuts and bolts included.

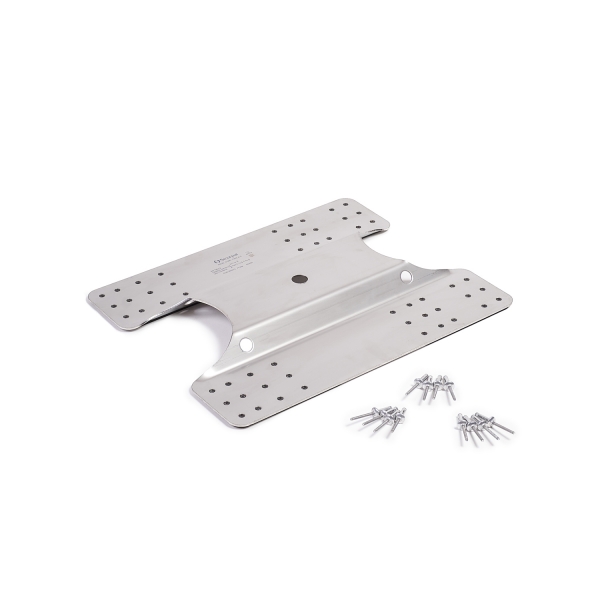

  • Plam w/rivets
    Art. 001439
    Anchorage plate for corrugated sheet that can be used both for type A point anchors and for type C and D linear anchors. It already includes waterproofing and rivets for fastening.

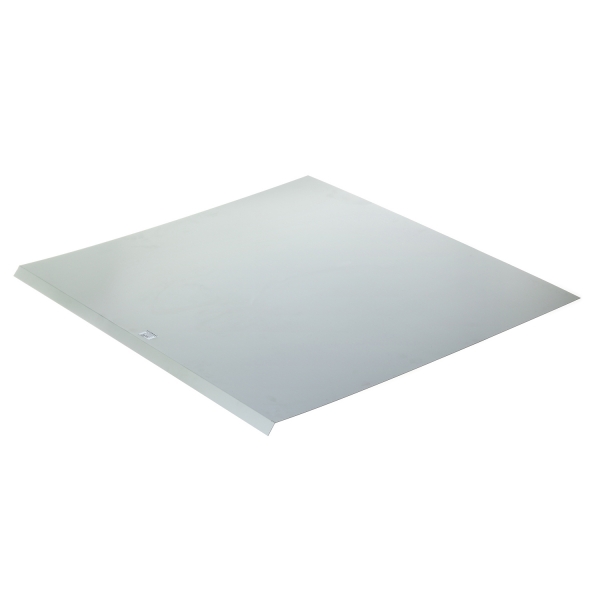

  • Prepaint. Sheet
    Art. 000631
    Pre-painted reinforcement sheet metal 100x50 cm with rivets

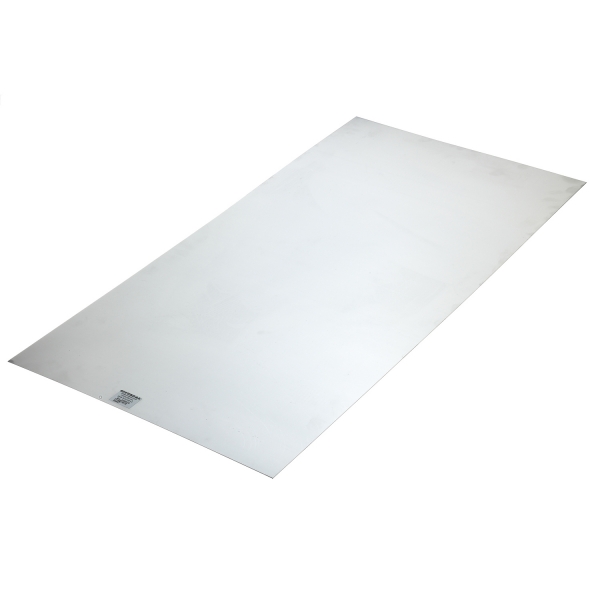

  • SS sheet
    Art. 000632
    Stainless steel reinforcement sheet metal 50x100cm cm with rivets

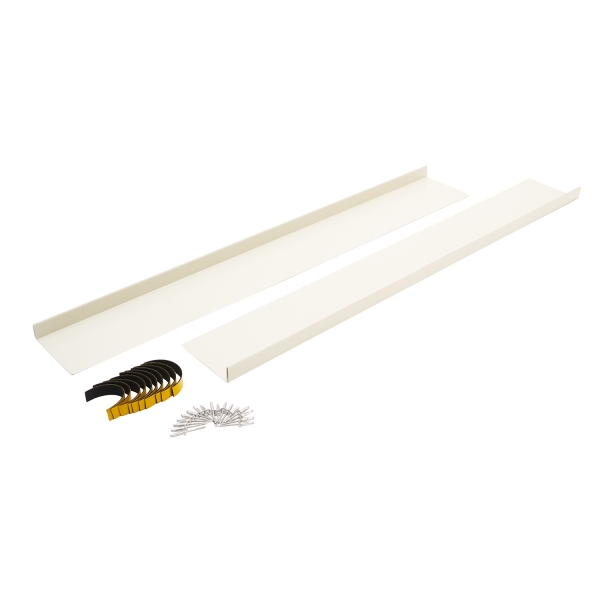

  • Pr Prepaint sht
    Art. 002647
    Pair of pre-painted reinforcing sheets with rivets
  • Pair SS sheets
    Art. 002648
    Pair of Stainless Steel reinforcing sheets with rivets

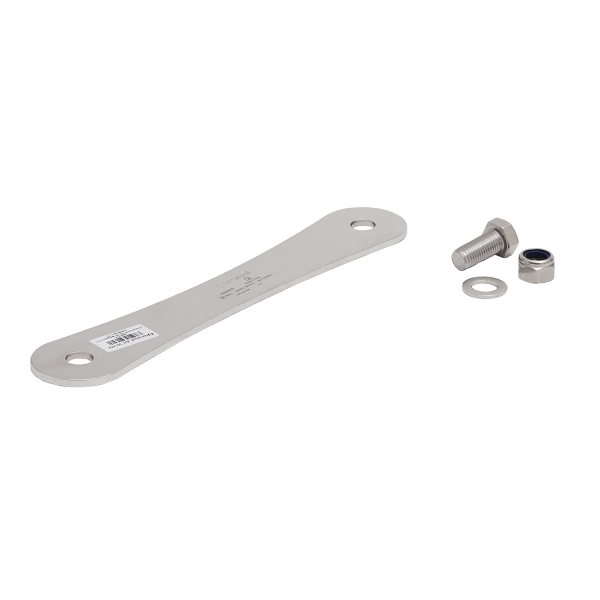

  • Lifel. Connect.
    Art. 001459
    Plate-LV coupling device
  • Alu fairlead
    Art. 001094
    Aluminium by-passable fairlead

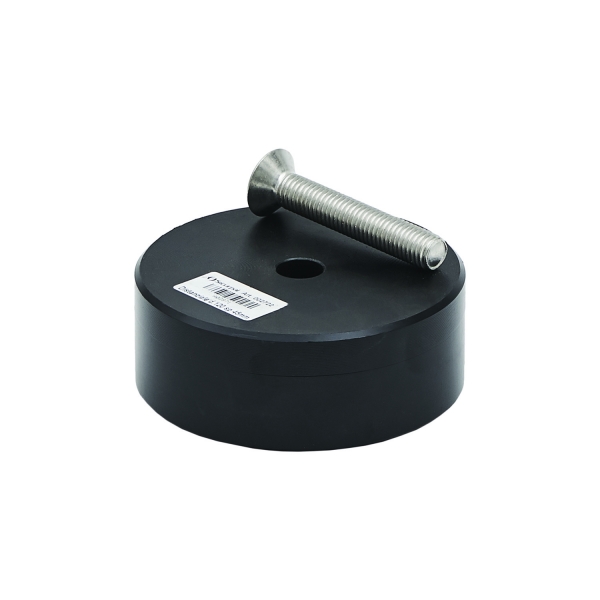

  • Cable support
    Art. 002751
    Aluminium cable support holder Dn.120 H.45 mm black with scerws

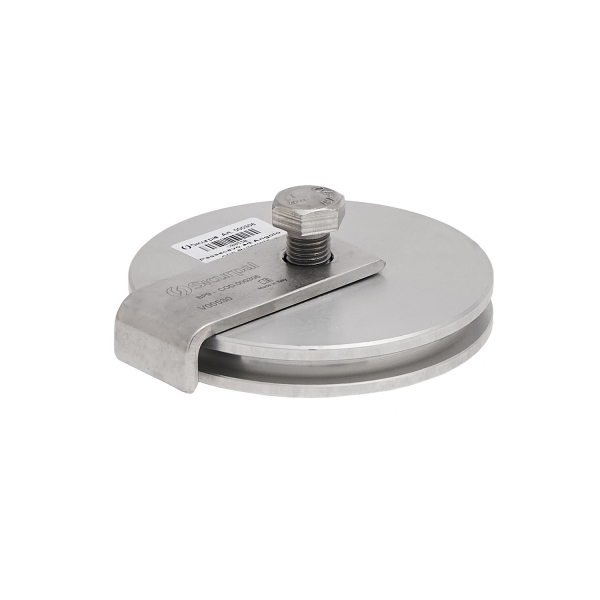

  • Corner pulley
    Art. 000306
    Corner cable support with AISI 304 stainless steel elements and aluminium pulley. Hardware included: bolt 16x50 + self-locking nut and ø16 mm stainless steel washer.
  • Ver.Fair.Tr.
    Art. 000192
    Fix Vertical fairlead for trolley with nuts and bolts
  • 0-45Adj.fair.
    Art. 001344
    Vertical fairlead adj0-45 for Shut
  • 90Fix.vert.fair
    Art. 001327
    90 Fix vertical fairlead for Shut
  • 90° Tube
    Art. 000308
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 90° corers.
  • 135° Tube
    Art. 000307
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 135° corers.
  • Straight tube
    Art. 000309
    AISI 304 Stainless steel pipe Ø14 mm with thickness 2 mm. Capable of covering 180° corers.
  • Cable dn8
    Art. 006650
    Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability.
  • Swage
    Art. 002477
    Tensioner with swage to crimp+nuts and bolts
  • Tensioner Supp
    Art. 000194
    AISI 304 Stainless steel support for installation of the pipe turnbuckle or the tube.Hardware included: bolt 16x35 mm and ø16 mm washer in stainless steel.
  • Tens tog/crimp
    Art. 000294
    Tensioner Toggle/Turnbuckle to crimp
  • F/S crimp tens.
    Art. 002494
    Fork/swage (to crimp) tensioner turnbuckle
  • Tens. dbl joint
    Art. 000032
    AISI 316 Stainless steel turnbuckle with closed core for cable tensioning, length 250 mm, with two jointed jaw ends.
  • F/F tensioner
    Art. 002493
    AISI 304 Stainless Steel Fork/fork tensioner turnbuckle
  • Jaw terminal
    Art. 000292
    Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304
  • Jaw terminal
    Art. 000293
    Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316
  • Eye terminal
    Art. 003664
    Eye terminal for d.8 cable to crimp
  • Fix dn8 cable
    Art. 001513
    AISI 304 stainless steel kit for clamping 8 mm diameter cable, composed of: 4 AISI 304 stainless steel clamps, 1 stainless steel thimble d. 8 mm and 2 heat-shrinkable sleeves.
  • Energy Absorber
    Art. 000033
    Stainless steel 304 Lifeline Energy Absorber
  • Quick release
    Art. 001758
    Quick release carabiner (not usable with SICURSLIM)
  • Openable travel
    Art. 003747
    Openable anti-fall cable traveller in AISI 316 stainless steel with carabiner
  • Fixed cable t.
    Art. 003927
    Fixed cable trolley for lifeline with AISI 316 stainless steel carabiner

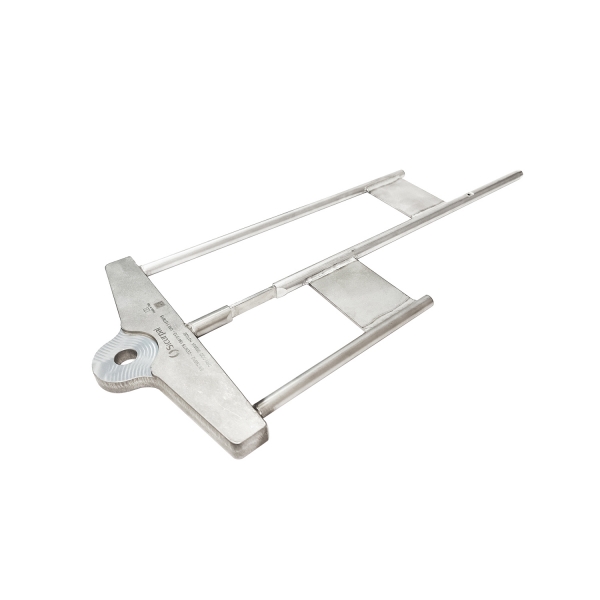

  • Trolley remov.
    Art. 003934
    Fixed trolley removal device
  • Tensioner Seal
    Art. 000290
    Seal for tensioner block
  • End of line 355
    Art. 003926
    End of line UNI 355 signal to be put on the cable
  • End line STOP
    Art. 003935
    End of line STOP signal to be put on the cable
  • End of line PPE
    Art. 003924
    End of line signal to be put on the cable informing to change the PPE
  • IT Lifeline sig
    Art. 000296
    Lifeline sign in Italian
  • Lifeline FI/SV
    Art. 004787
    Lifelines information sign in Finnish and Swedish
  • Lifeline signEN
    Art. 003354
    Lifelines information sign, English version
  • Lifeline signES
    Art. 004738
    Lifelines information sign in Spanish
  • Lifeline ID
    Art. 000291
    Lifeline identification code
  • Guaina Spray pr
    Art. 006108
    Guaina Spray protettiva e sigillante 500ml
  • System Register
    Art. 002562
    Sicurpal's System Register - Inspection and maintenance
  • Docubox
    Art. 003334
    Document holder with fixing kit

Components to be combined with this lifeline

  • Dbl crimp termi
    Art. 002789
    Double crimping terminals for cable junction dn8, external 12,5 inox aisi 316

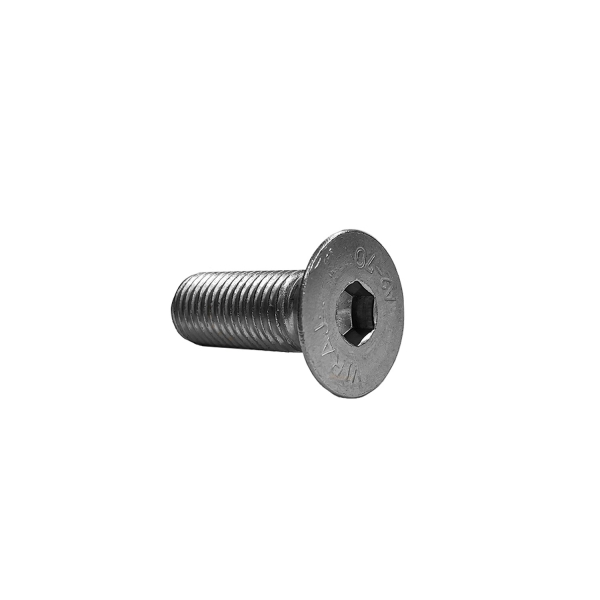

  • Bolt
    Art. 003669
    Countersunk head bolt M16x45 Stainless steel AISI 304

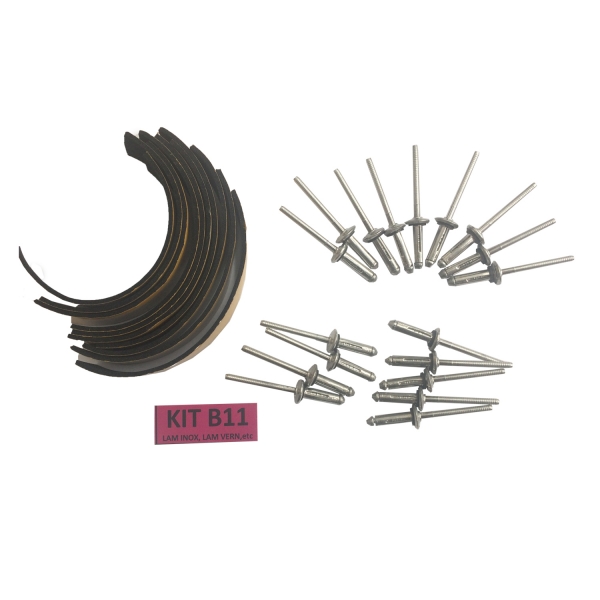

  • Kit B11
    Art. 000895
    Fixing kit consisting of: 18 short rivets with waterproof membrane

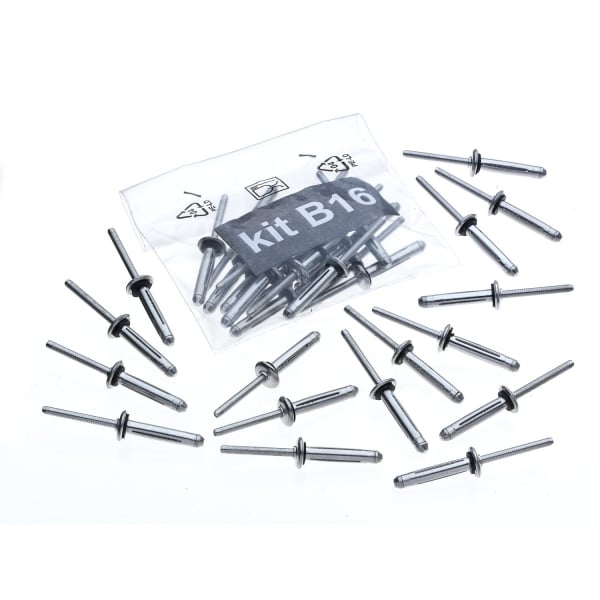

  • Kit B16
    Art. 001610
    Nuts and bolts kit consisting of: 16 long rivets with gasket
