Sicurpal walkways are designed for securing passages at height and/or in the presence of obstacles.
Made entirely of aluminium
Non-slip walking surface
Designed to be used only on flat surfaces, or fixed to the roof by supports, for a maximum load capacity of 200 kg/sqm.
For special requirements, request a quotation communicating the specifications required (walkway measurements, distance between supports, load capacity, place of installation, etc.).
They can be custom-designed according to the required length.
SICURAL WALKWAY TECHNICAL FEATURES
Standard width
mm 600/800 (decking)
Standard module length
mm 1000/2000/3000 (to be chosen by the designer in the case of multiple module compositions. Multiple modules of 200 mm)
Height
mm 1100
Ask for more information for the category: Sicurpal walkways

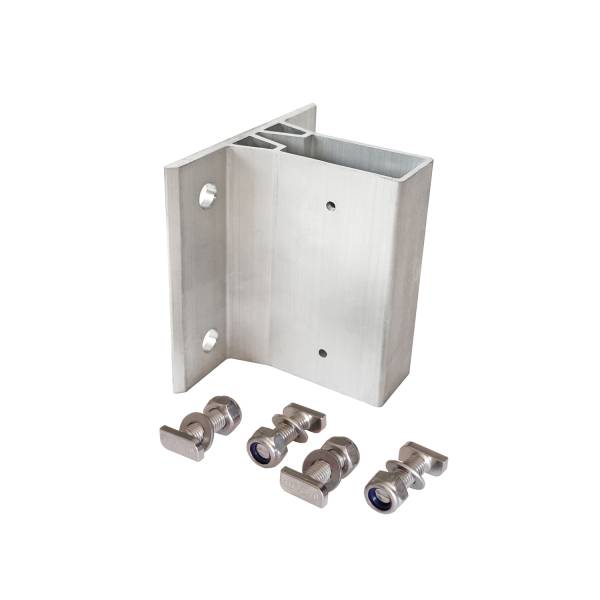

H120 mm bracket for guardrail and walkway with 2x hammerhead screws.
Product
004020
Template
Coppia Chiusura
Details
Coppia Chiusura Profilo Passerella: kit con 2 lamiere + 4 viti 4.8x16 autofil.
Product
009111
Template
Giunzione passe
Details
Giunzione passerella L250. Da fissare con nr. 8 bulloni M10 non forniti
Product
005001
Template
Tubolare e Ango
Details
Nr. 1 Tubolare di supporto comprensivo di nr. 2 Angolari per Fissaggio Passerella
Product
009007
Template
Passerella Sicu
Details
Passerella Sicurpal 3,0 m x 600mm modulo centrale
Product
005616
Template
Passerella Sicu
Details
Passerella Sicurpal 3,0 m x 800mm modulo finale
Product
005251
Template
Passerella Sicu
Details
Passerella Sicurpal di centrale 2 m x 800mm
Product
009095
Template
Passerella Sicu
Details
Passerella Sicurpal 2,0 m x 600mm
Product
005660
Template
Passerella Sicu
Details
Passerella Sicurpal 1,0 m x 800mm modulo completo
Product
004478
Template
FIT handrail
Details

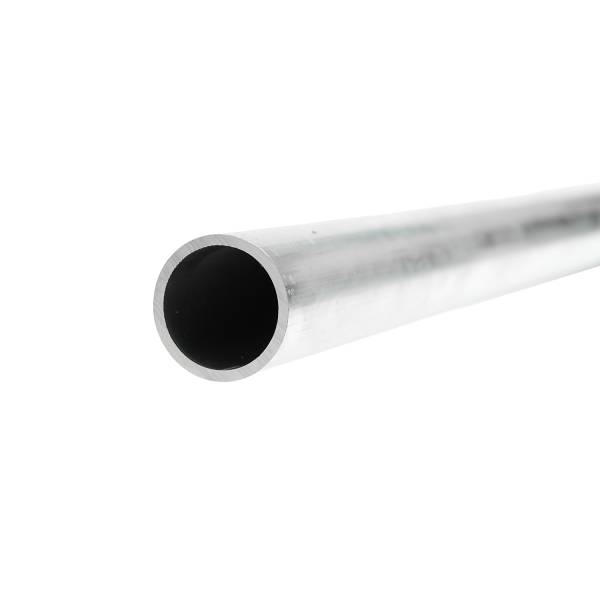

Handrail FIT version, tubular 40x3 and L=3000 mm
Product
004479
Template
Knee rail
Details

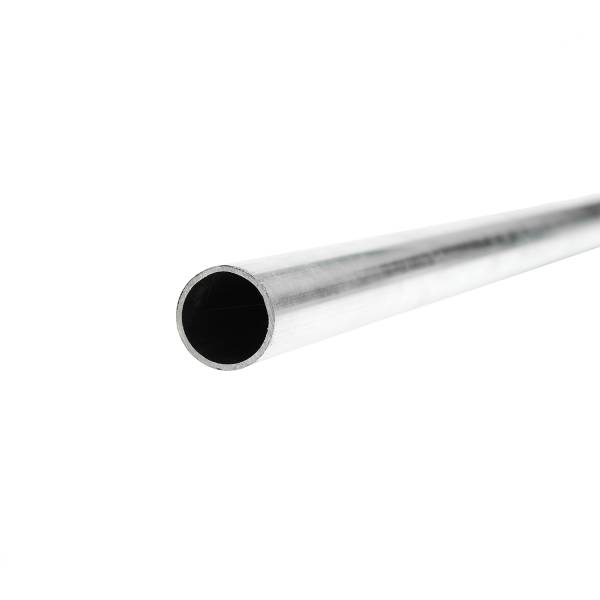

Knee rail FIT and BOLD version, tubular 35x2 and L=3000 mm
Product
004648
Template
Toeboard
Details

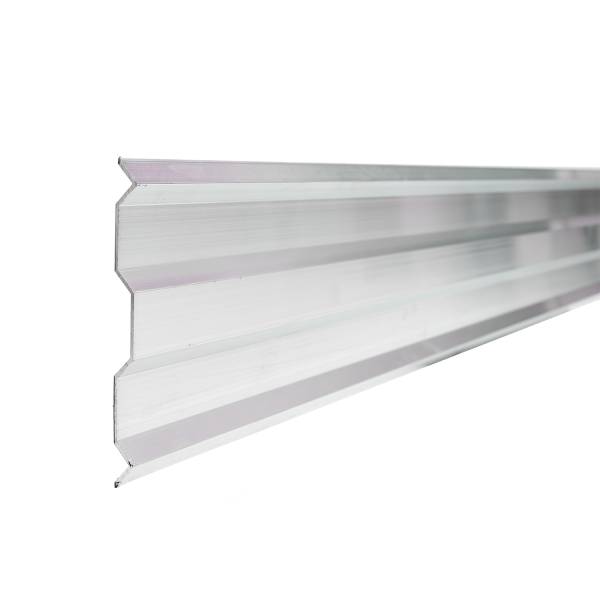

3 meters toeboard with screws
Product
004653
Template
Cone. handrail
Details

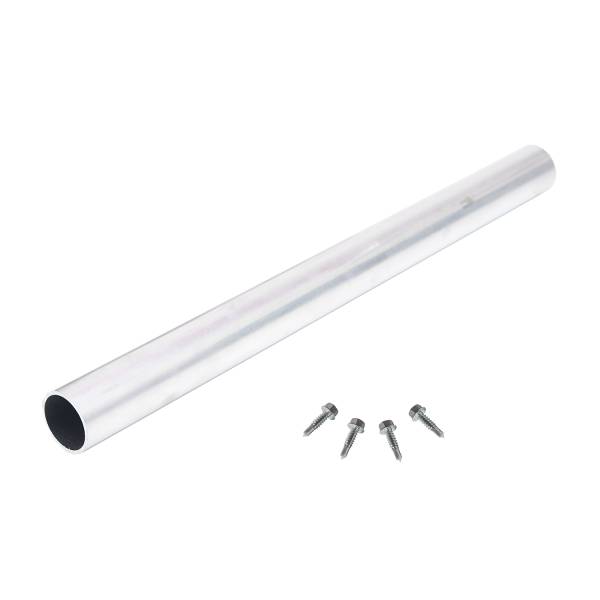

FIT handrail connection 400 mm including 2 self-drilling screws for tubular joining
Product
004654
Template
Cone. knee rail
Details

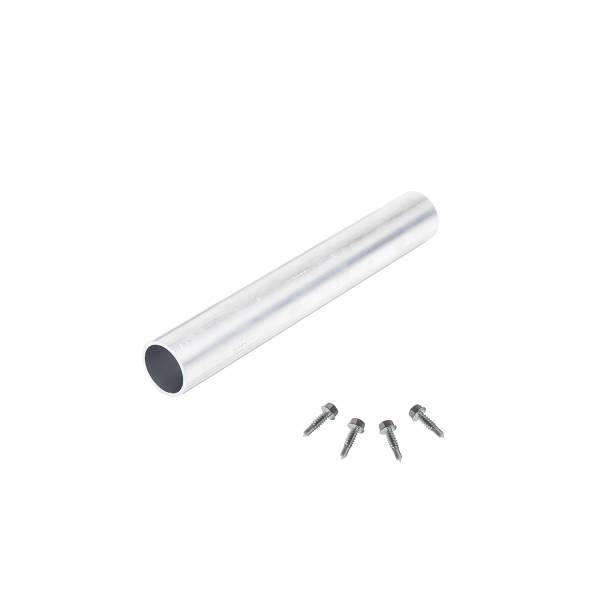

FIT and BOLD knee rail connection including 2 self-drilling screws for tubular joining
Product
004481
Template
Variable corner
Details
Accessory for FIT handrail that allows to perform variable curves of minimum 45 ° including 2 self-drilling screws and clamping bolt m12.
Product
004482
Template
Variable corner
Details

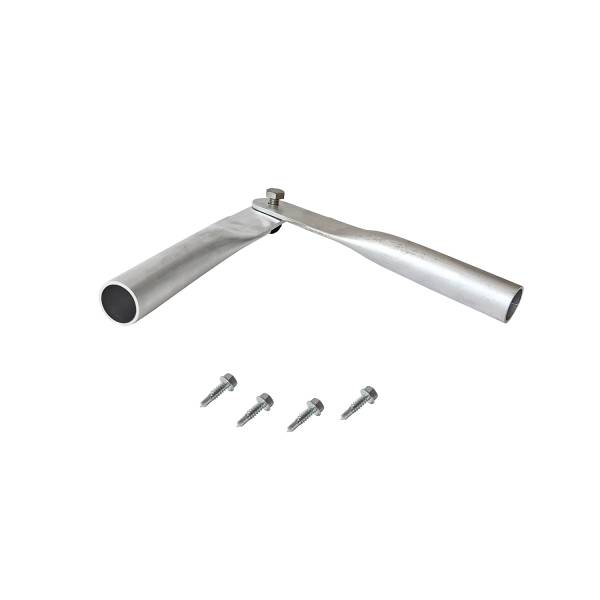

Accessory for FIT and BOLD knee rail that allows to perform variable curves of minimum 45 ° including 2 self-drilling screws and clamping bolt m12 with plastic cover
