PTV

Lifeline for hanging gardens and green roofs.

Ask for more information

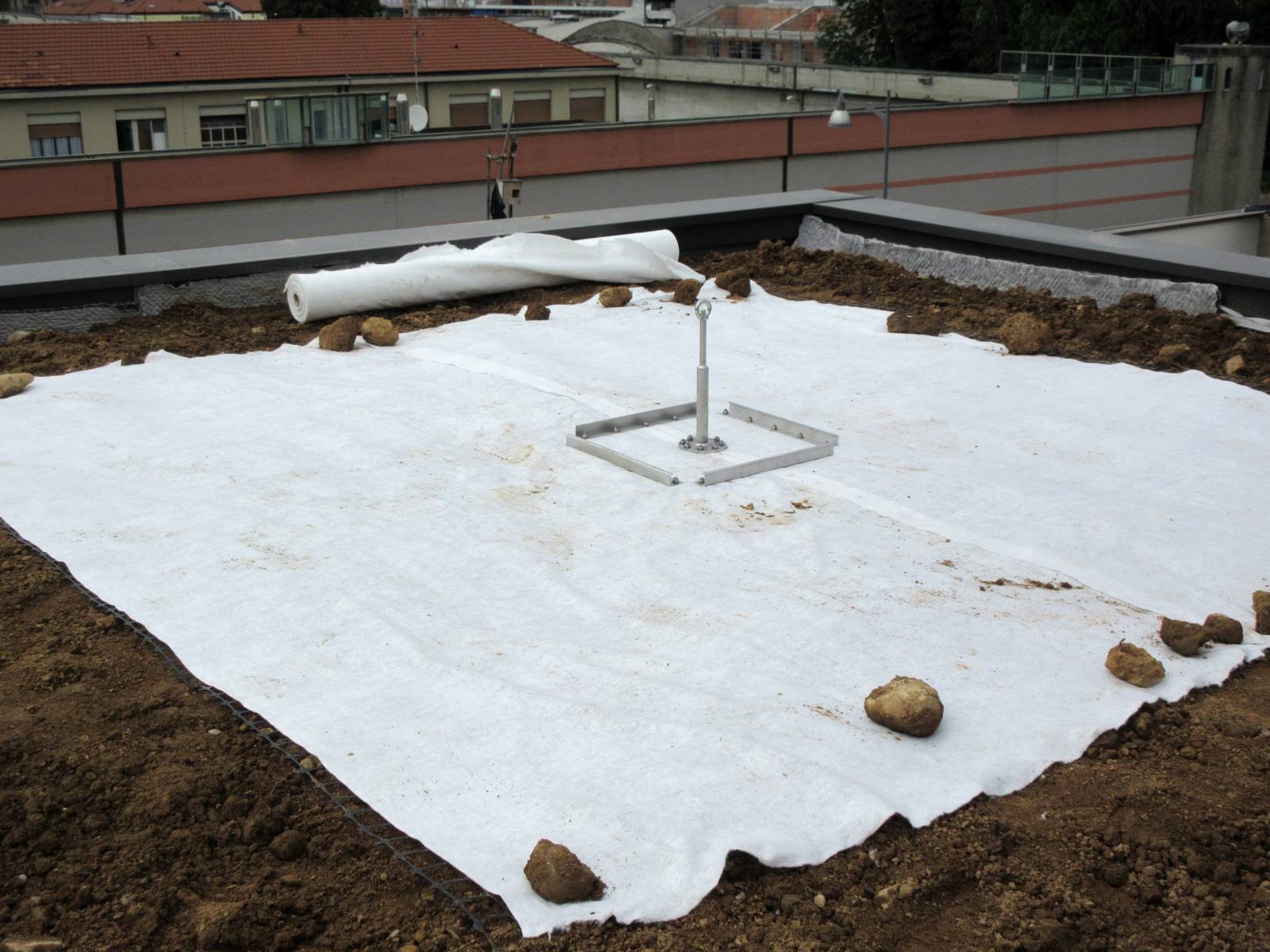

Green roofs are one of the best solutions for thermal insulation but require frequent maintenance. That is why a system guaranteeing the safety of maintenance operators must be included in the designing stage. Sicurpal found the best solution for this requirement: PTV is a fall protection system that can be installed in only 8 cm of soil - the weight of the various components of the system can be in fact used to secure it without piercing the roofing or waterproofing membrane.

  • Anchorage device compliant with standards EN 795:2012 and CEN/TS 16415:2013
  • Can be used simultaneously by two people for Type A
  • Can be used simultaneously by three people for Type C
  • Structure made entirely of AISI 304 stainless steel with pickled treatment against corrosion
  • Can be installed on all kinds of roofing with a maximum slope of 5°
  • Post height 40 cm
  • 10 year warranty


For further information on device anchoring and on the responsibilities under current regulations, please download the manual below.

Ask for more information
Product
001774
Template
PTV pole
Details
Anchor post in AISI 304 Stainless steel with circular base with diameter 150 mm and height h 430 mm. Ideal for green roofs.
Product
002115
Template
Kit Fix PTV A
Details

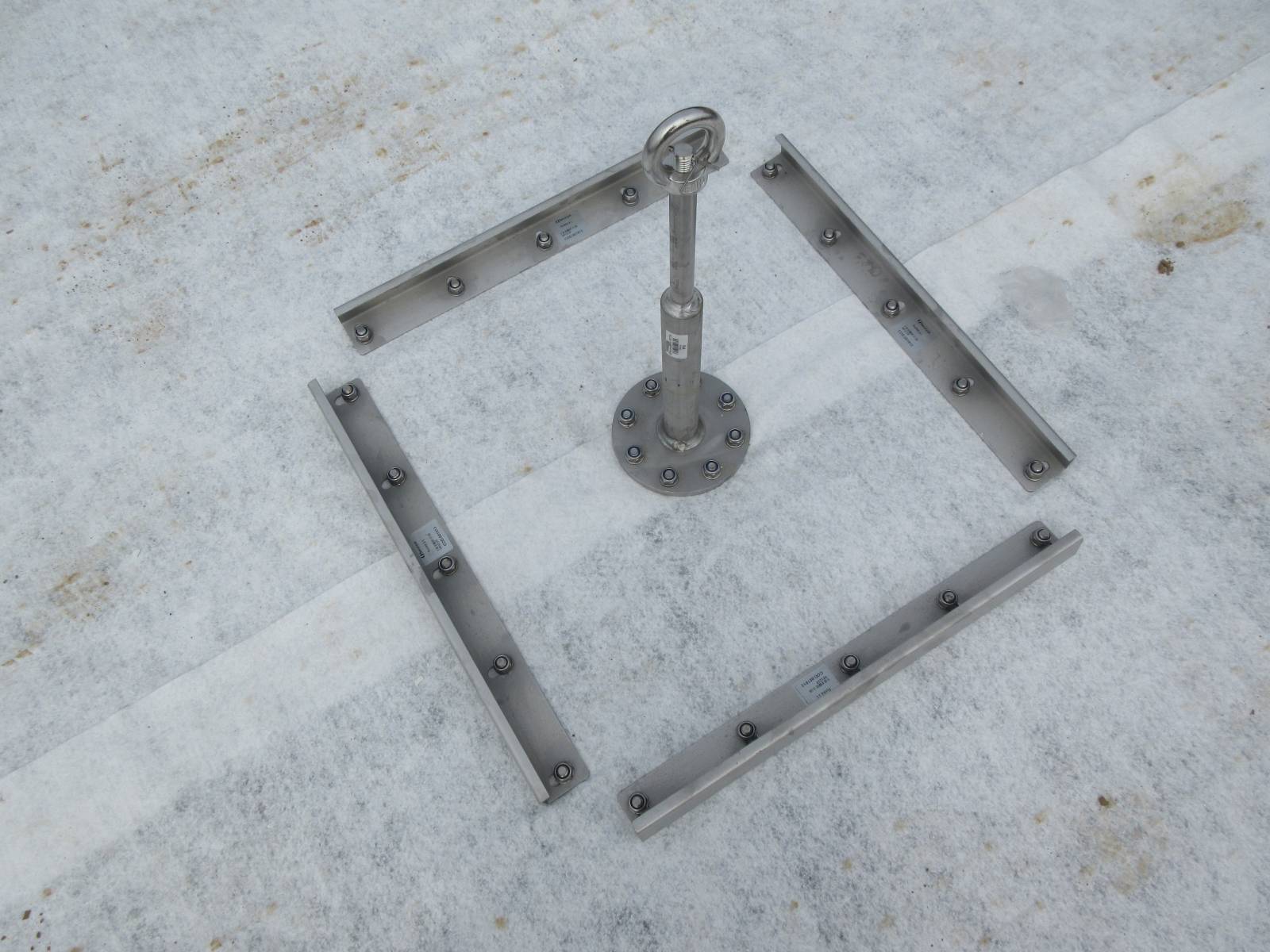

Fixing base for A type PTV pole for Green roofs, excluding net and fabric cloth
Product
002116
Template
Kit Fix PTV C
Details
Fixing base for C type PTV pole for Green roofs, excluding net and fabric cloth
Product
006851
Template
Stabifilter SFE
Details
Non-woven geotextile in white polypropylene. roll size 2.00 x 50 m (100 sq.m) price per sq.m
Product
006852
Template
Rete Grid5
Details

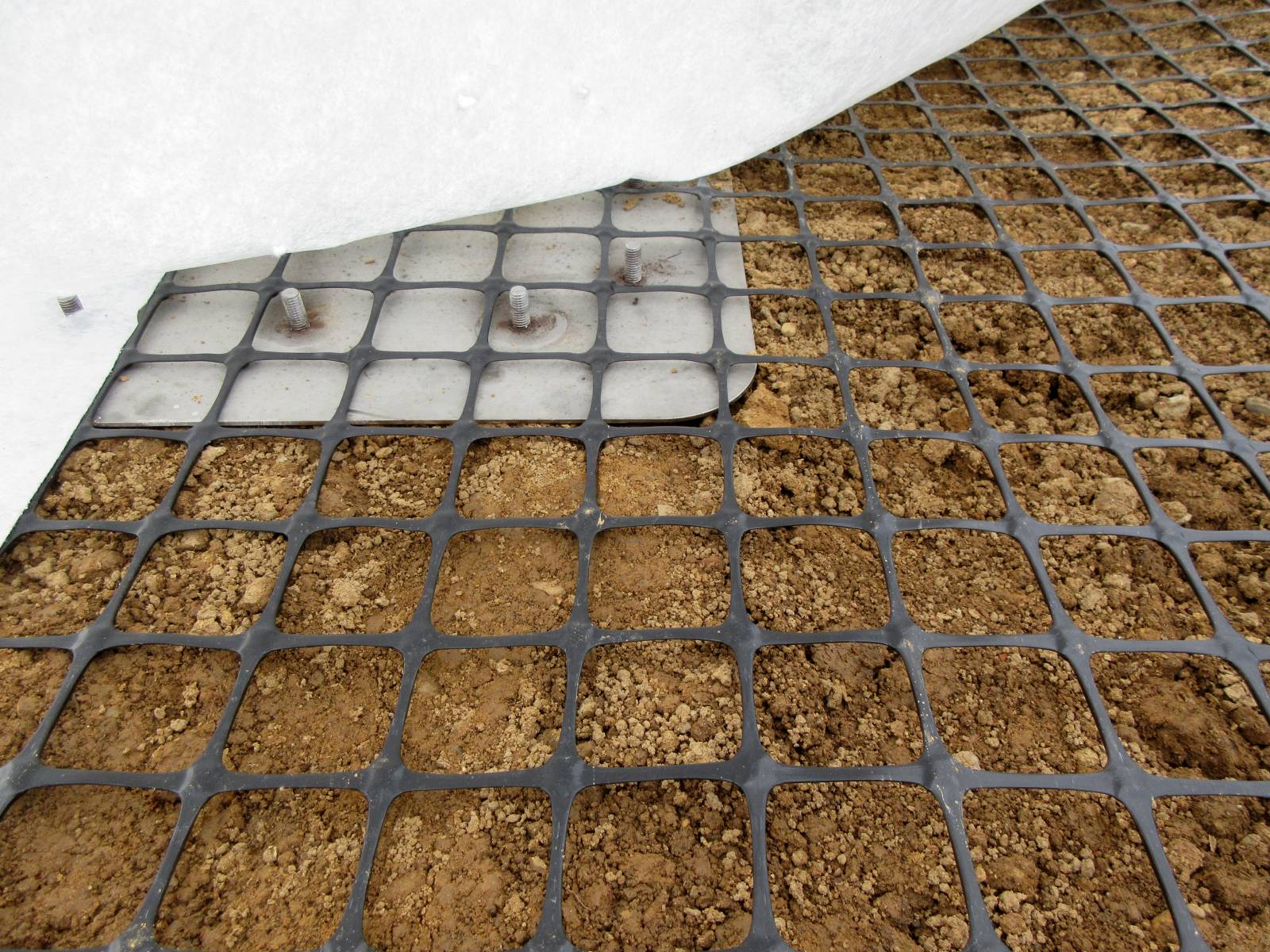

Black geogrid in black polypropylene to make the ballast support. roll size 4.00 x 50 m (200 sq.m) price per sq.m
Product
000058
Template
Eyebolt+Split p
Details

Eyebolt and Split pin made in stainless steel AISI 316 Ø16
Product
000501
Template
SS int fairlead
Details

Intermediate cable support in AISI 304 Stainless Steel. M16 self-locking nut and Ø 16 washer included.
Product
000192
Template
Ver.Fair.Tr.
Details

Fix Vertical fairlead for trolley with nuts and bolts
Product
001345
Template
0-45Tilt.fairl.
Details

Tilted fairlead adj 0-45 for Shut
Product
006650
Template
Cable dn8
Details

Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability.
Product
000294
Template
Tens tog/crimp
Details

Tensioner Toggle/Turnbuckle to crimp
Product
002494
Template
F/S crimp tens.
Details

Fork/swage (to crimp) tensioner turnbuckle
Product
000292
Template
Jaw terminal
Details

Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304
Product
000293
Template
Jaw terminal
Details

Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316
Product
000298
Template
Brack. PBS-ST8
Details

Anchor bracket for PBS-ST8. Ideal to create hoisting lines or connect two lifelines to the same post
Product
000290
Template
Tensioner Seal
Details

Seal for tensioner block
Product
000291
Template
Lifeline ID
Details

Lifeline identification code
