Stainless Steel Sicurslim

Slim Lifeline

 "The lifeline for small structures"

  • Entirely made of AISI 304 stainless steel
  • Lifeline with a 30 or 50 cm height from the base
  • Flat base for installation on beams or V base for installation on ridgepoles - minimum 15 cm


By downloading the manual below, you can obtain more information as regards responsibilities under the current regulations and device anchoring.

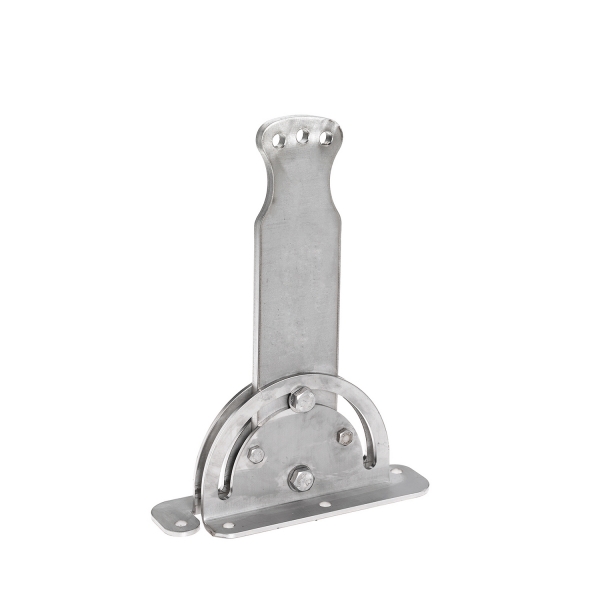

  • Sicurslim PX35
    Art. 001566
    Stainless steel device with base dimensions 316x107x10 mm and device height 370 mm. Central plate fixed with two bolts 16 mm to cushion the fall. Ideal for flat bases and structures with reduced dimensions.

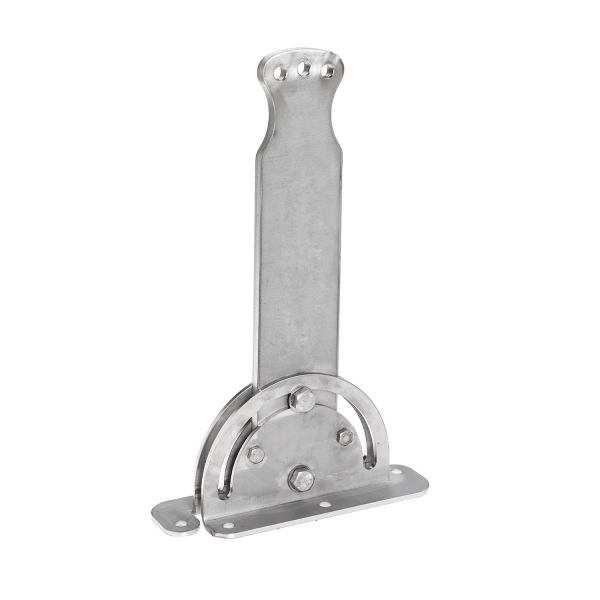

  • Sicurslim PX50
    Art. 001529
    Stainless steel device with base dimensions 316x107x10 mm and device height 509 mm. Central plate fixed with two bolts 16 mm to cushion the fall. Ideal for flat bases and structures with reduced dimensions.
  • Sicurslim CX35
    Art. 001570
    Stainless steel device with V-shaped base with dimensions 316x104x10 mm and height of the device 381 mm. Central plate fixed with two bolts 16 mm to cushion the fall. Ideal for ridge bases and small size.
  • Sicurslim CX50
    Art. 001569
    Stainless steel device with V-shaped base with dimensions 316x104x10 mm and height of the device 520 mm. Central plate fixed with two bolts 16 mm to cushion the fall. Ideal for ridge beam and small size.
  • Fix straig.fair
    Art. 001346
    Fix straight fairlead for traveller
  • 0-45Straig.fair
    Art. 001347
    Straight fairlead adj 0-45 for traveller
  • Alu fairlead
    Art. 001094
    Aluminium by-passable fairlead
  • Cable dn8
    Art. 006650
    Cable In AISI 316 stainless steel Ø 8 mm 49 strands with identification bar for product traceability.
  • Tens tog/crimp
    Art. 000294
    Tensioner Toggle/Turnbuckle to crimp
  • F/S crimp tens.
    Art. 002494
    Fork/swage (to crimp) tensioner turnbuckle
  • Tens. dbl joint
    Art. 000032
    AISI 316 Stainless steel turnbuckle with closed core for cable tensioning, length 250 mm, with two jointed jaw ends.
  • F/F tensioner
    Art. 002493
    AISI 304 Stainless Steel Fork/fork tensioner turnbuckle
  • Jaw terminal
    Art. 000292
    Terminal with fixed jaw, with crimping sleeve in stainless steel AISI 304
  • Jaw terminal
    Art. 000293
    Terminal with jointed jaw, with crimping sleeve in stainless steel AISI 316
  • Eye terminal
    Art. 003664
    Eye terminal for d.8 cable to crimp
  • Fix dn8 cable
    Art. 001513
    AISI 304 stainless steel kit for clamping 8 mm diameter cable, composed of: 4 AISI 304 stainless steel clamps, 1 stainless steel thimble d. 8 mm and 2 heat-shrinkable sleeves.
  • Energy Absorber
    Art. 000033
    Stainless steel 304 Lifeline Energy Absorber
  • Quick release
    Art. 001518
    Large Quick link for AISI 316 stainless steel heatsink connection
  • Openable travel
    Art. 003747
    Openable anti-fall cable traveller in AISI 316 stainless steel with carabiner
  • Fixed cable t.
    Art. 003927
    Fixed cable trolley for lifeline with AISI 316 stainless steel carabiner
  • Trolley remov.
    Art. 003934
    Fixed trolley removal device
  • Tensioner Seal
    Art. 000290
    Seal for tensioner block
  • End of line PPE
    Art. 003924
    End of line signal to be put on the cable informing to change the PPE
  • End of line 355
    Art. 003926
    End of line UNI 355 signal to be put on the cable
  • End line STOP
    Art. 003935
    End of line STOP signal to be put on the cable
  • IT Lifeline sig
    Art. 000296
    Lifeline sign in Italian
  • Lifeline signEN
    Art. 003354
    Lifelines information sign, English version
  • Lifeline signES
    Art. 004738
    Lifelines information sign in Spanish
  • Lifeline FI/SV
    Art. 004787
    Lifelines information sign in Finnish and Swedish
  • Lifeline ID
    Art. 000291
    Lifeline identification code
  • System Register
    Art. 002562
    Sicurpal's System Register - Inspection and maintenance
  • Docubox
    Art. 003334
    Document holder with fixing kit

Components to be combined with this lifeline

  • Dbl crimp termi
    Art. 002789
    Double crimping terminals for cable junction dn8, external 12,5 inox aisi 316
  • Kit B3
    Art. 000887
    Nuts and bolts kit consisting of: 8 self-lock.+8 d12 washers
  • Bar dn12
    Art. 000014
    Threaded rod dn12 Stainless steel 304 Degreased
  • Bar dn12x18
    Art. 000035
    Threaded rod dn12 of 18 cm with bolt
  • Resin
    Art. 002365
    High quality resin for renforced concrete and bricks
  • Eco.Resin 410ml
    Art. 000021
    Econ. two-component resin 410ml
  • Res.Nordic400ml
    Art. 002124
    Nordica 400 ml economic two-component resin - for applications up to -20°
  • Screw
    Art. 000010
    Fully threaded screw with countersunk TX40 9x160
  • Screw
    Art. 000245
    Fully threaded screw with countersunk TX40 9x200
  • Screw
    Art. 000247
    Fully threaded screw with countersunk TX40 9x280
  • Screw
    Art. 000249
    Fully threaded screw with countersunk TX40 11x100
  • Vite t.f 11X200
    Art. 003696
    Vite Tutto Filetto TX50 11 X 200
  • Screw
    Art. 005940
    Fully threaded screw with countersunk TX40 9x160
  • Washer M10 diam
    Art. 000011
    Washer M10 diam.
  • Washer M10 diam
    Art. 000250
    Washer M10 diam.
  • Lead dn90
    Art. 000017
    Lead V 50x50cm dn90
